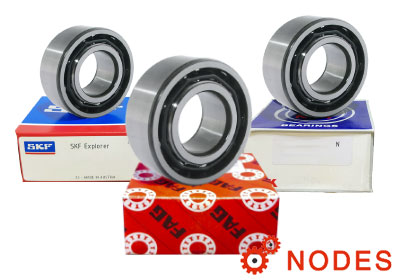

Double row deep groove ball bearings

double row deep groove ball bearings

Double row deep groove ball bearings are very suitable for bearing arrangements where the load carrying capacity of a single row bearing is inadequate. these ball bearings are equipped with various different characteristics depending on individual customer requirements.

Brand: SKF, NSK, FAG
Series: 42, 43

Double row deep groove ball bearings
SKF 4205 ATN9 deep groove ball bearings

SKF 4205 ATN9 deep groove ball bearings

SKF 4205 ATN9 bearing, double row deep groove ball bearing, Dimensions: 25mm x 52mm x 18mm, Limiting Speeds:11000 r/min.

Inquire Now

  • Brand: SKF
  • Inside Diameter: 25 mm
  • Outside Diameter: 52 mm
  • Width: 18 mm
  • Basic dynamic load rating: 19 kN
  • Basic static load rating: 19 kN

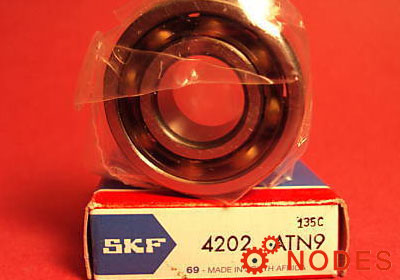

SKF 4202 ATN9 deep groove ball bearings

SKF 4202 ATN9 deep groove ball bearings

SKF 4202 ATN9 bearing, double row deep groove ball bearing, Dimensions: 15mm x 35mm x 14mm, Limiting Speeds:17000 r/min.

Inquire Now

  • Brand: SKF
  • Inside Diameter: 15 mm
  • Outside Diameter: 35 mm
  • Width: 14 mm
  • Basic dynamic load rating: 11.9 kN
  • Basic static load rating: 11.9 kN

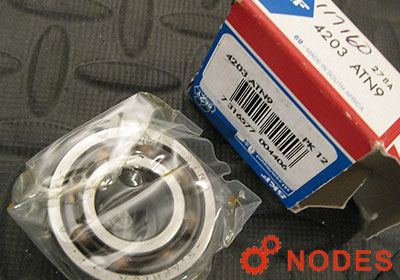

SKF 4203 ATN9 deep groove ball bearings

SKF 4203 ATN9 deep groove ball bearings

SKF 4203 ATN9 bearing, double row deep groove ball bearing, Dimensions: 17mm x 40mm x 16mm, Limiting Speeds:15000 r/min.

Inquire Now

  • Brand: SKF
  • Inside Diameter: 17 mm
  • Outside Diameter: 40 mm
  • Width: 16 mm
  • Basic dynamic load rating: 14.8 kN
  • Basic static load rating: 14.8 kN
SKF 4204 ATN9 deep groove ball bearings

SKF 4204 ATN9 deep groove ball bearings

SKF 4204 ATN9 bearing, double row deep groove ball bearing, Dimensions: 20mm x 47mm x 18mm, Limiting Speeds:13000 r/min.

Inquire Now

  • Brand: SKF
  • Inside Diameter: 20 mm
  • Outside Diameter: 47 mm
  • Width: 18 mm
  • Basic dynamic load rating: 17.8 kN
  • Basic static load rating: 17.8 kN
SKF 4304 ATN9 deep groove ball bearings

SKF 4304 ATN9 deep groove ball bearings

SKF 4304 ATN9 bearing, double row deep groove ball bearing, Dimensions: 20mm x 52mm x 21mm, Limiting Speeds:12000 r/min.

Inquire Now

  • Brand: SKF
  • Inside Diameter: 20 mm
  • Outside Diameter: 52 mm
  • Width: 21 mm
  • Basic dynamic load rating: 23.4 kN
  • Basic static load rating: 23.4 kN

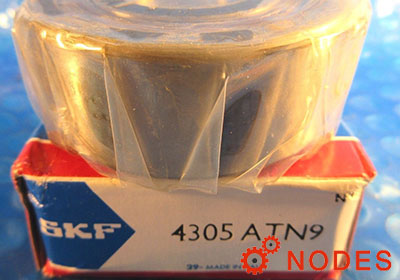

SKF 4305 ATN9 deep groove ball bearings

SKF 4305 ATN9 deep groove ball bearings

SKF 4305 ATN9 bearing, double row deep groove ball bearing, Dimensions: 25mm x 62mm x 24mm, Limiting Speeds:10000 r/min.

Inquire Now

  • Brand: SKF
  • Inside Diameter: 25 mm
  • Outside Diameter: 62 mm
  • Width: 24 mm
  • Basic dynamic load rating: 31.9 kN
  • Basic static load rating: 31.9 kN
