Pillow Blocks & Flanges & Take up bearing units

Pillow block bearings, flange bearing units, and take-up bearings units all consist of a housing with a bearing mounted in it. The outer surface of the bearing and the internal surface of the housing are spherical, so that the unit is self-aligning. They are available in a variety of materials, mounting configurations and various bearing features. Each mounted unit, including a mounted bearing, acts as a system to position the bearing securely for reliable operation.

Read more about each type of pillow block bearing as below.

Pillow Blocks

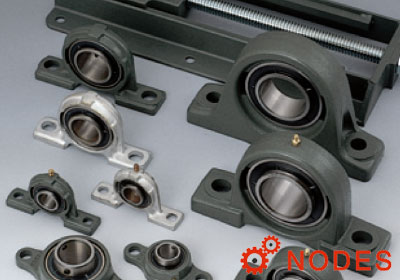

Pillow blocks with bearings mounted in rigid housings of simple construction are the most common bearing units. They are extensively used for various kinds of transmission equipment and machinery.

Pillow Blocks & Flanges & take-up bearing units

4 bolt flanged bearing units, Square Flanged Units

These bearing housings have square flange which can be easily attached to a machine with four bolts.

2 bolt flanged bearing, Oval Flanged Units

These bearing housings have oval flanges which can be easily installed onto a machine with two bolts. This type of bearing unit is suitable where mounting space is limited or where it is necessary to minimize the distance between shafts.

Nodes bearings supplies different types and brand of ball bearing units. Brand: FYH, ASAHI, SKF, NSK, INA, TIMKEN

All bearing units

  • Pillow block bearings
  • 2 bolt flange bearings
  • 3 bolt flange bearings
  • 4 bolt flange bearings
  • Take up bearings
  • Insert bearings

Bearing units articles

Bearing unit products

Bearing unit numbers

NSK UC212D1 bearing
shaft size:60mm, Bolt size:M16, Total lenght:241mm
NSK UC213D1 bearing
shaft size:65mm, Bolt size:M20, Total lenght:265mm
NSK UC211D1 bearing
shaft size:55mm, Bolt size:M16, Total lenght:219mm
NSK UC210D1 bearing
shaft size:50mm, Bolt size:M16, Total lenght:206mm
NSK UC209D1 bearing
shaft size:45mm, Bolt size:M14, Total lenght:190mm
NSK UC208D1 bearing
shaft size:40mm, Bolt size:M14, Total lenght:184mm
NSK UC207D1 bearing
shaft size:35mm, Bolt size:M14, Total lenght:167mm
NSK UC205D1 bearing
shaft size:25mm, Bolt size:M10, Total lenght:140mm
