FAG 6205-C-2ZC3 Bearing

FAG 6205-C-2ZC3 deep groove ball bearings

Also known as : 6205-C-2ZC3, 6205-2ZC3, 6205ZZC3

  • Inside Diameter: 25 mm
  • Outside Diameter: 52 mm
  • Width: 15 mm
  • Basic dynamic load rating: 15 kN
  • Basic static load rating: 7.8 kN

Inquire Now


FAG 6205-C-2ZC3 Bearing

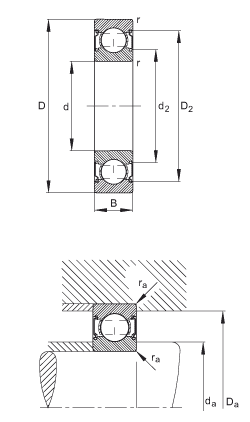

FAG 6205-C-2ZC3 Bearing details

model 6205-C-2ZC3
d 25 mm
D 52 mm
B 15 mm
D2 46.4 mm
Da max 46.4 mm
d2 31.4 mm
da min 30.6 mm
ra max 1 mm
rmin 1 mm
Cr 15000 N Basic dynamic load rating, radial
C0r 7800 N Basic static load rating, radial
Limiting speed 18400 1/min
Reference speed 16000 1/min
Fatigue limit load 485 N radial
Mass 0.133 kg

6205-C-2ZC3 FAG bearing, single row, Deep groove ball bearings, modified internal construction (Generation C), 2Z: gap seals on both sides.

FAG 6205-C-2ZC3 bearing cross reference

SKF 6205-2RS1 bearing
25mm x 52mm x 15mm
SKF 6205-2Z bearing
25mm x 52mm x 15mm
NSK 6205DDU bearing
25mm x 52mm x 15mm
NSK 6205ZZ bearing
25mm x 52mm x 15mm
NSK 6205ZZC3 bearing
25mm x 52mm x 15mm
SKF 6205-2Z/C3 bearing
25mm x 52mm x 15mm
SKF 6205-2RSH bearing
25mm x 52mm x 15mm
SKF 6205-2RSH/C3 bearing
25mm x 52mm x 15mm
NSK 6205 bearing
25mm x 52mm x 15mm
NSK 6205VV bearing
25mm x 52mm x 15mm
FAG 16005 bearing
25mm x 47mm x 8mm
FAG 6005 bearing
25mm x 47mm x 12mm
