FAG 6406 Bearing

FAG 6406 bearings

Also known as : 6406

  • Inside Diameter: 30 mm
  • Outside Diameter: 90 mm
  • Width: 23 mm
  • Basic dynamic load rating: 45.5 kN
  • Basic static load rating: 25 kN

Inquire Now

FAG 6406 Bearing

FAG 6406 Bearing details

d 30 mm
D 90 mm
B 23 mm
D1 74,6 mm
Da max 79 mm
d1 55,6 mm
da min 41 mm
ra max 1,5 mm
rmin 1,5 mm
m 0,74 kg  Mass
Cr 45500 N  Basic dynamic load rating, radial
C0r 25000 N  Basic static load rating, radial
Cur 1640 N  Fatigue limit load, radial
nG 10800 1/min  Limiting speed
nB 8600 1/min  Reference speed
f0 13  Calculation factor

As FAG bearing distributor, Nodes bearings have FAG 6406 deep groove ball bearings in stock, main dimensions to DIN 625-1.

related articles

Related numbers

FAG 62206-2RSR bearing
30mm x 62mm x 20mm

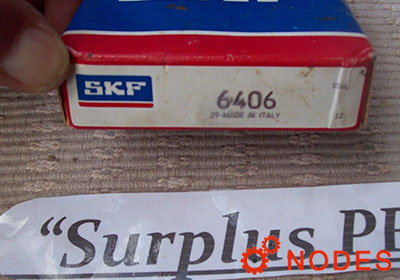

SKF 6406 bearing
