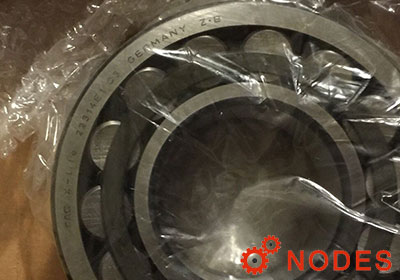

FAG 22314-E1-XL Bearing

FAG 22314-E1-XL Spherical roller bearings

Also known as : 22314-E1-XL, 22314E, 22314EAE4

  • Inside Diameter: 70 mm
  • Outside Diameter: 150 mm
  • Width: 51 mm
  • Basic dynamic load rating: 390 kN
  • Basic static load rating: 390 kN

Inquire Now

FAG 22314-E1-XL Bearing

FAG 22314-E1-XL Bearing details

model 22314-E1-XL
d 70 mm
D 150 mm
B 51 mm
D1 128 mm
Da max 138 mm
d2 86.7 mm
da min 82 mm
ra max 2.1 mm
rmin 2.1 mm
Cr 390000 N
C0r 390000 N
Limiting speed 4800 1/min
Reference speed 3700 1/min
Cur 36500 N Fatigue limit load, radial
e 0.34
Y1 2
Y2 2.98
Y0 1.96
mass 4.21 kg

FAG 22314-E1-XL roller bearings, spherical roller bearing, Increased capacity design, main dimensions to DIN 635-2.

related articles

Related numbers

FAG 21314-E1-XL bearing
70mm x 150mm x 35mm
FAG 22214-E1-XL bearing
70mm x 125mm x 31mm

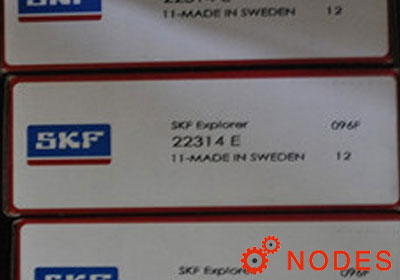

SKF 22314E bearing
70mm x 150mm x 51mm

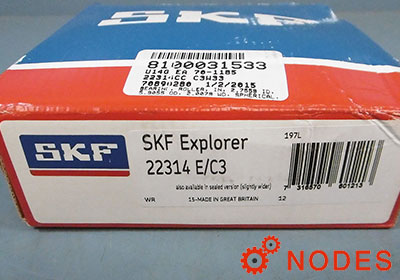

SKF 22314E/C3 bearing
