FAG 30220-A-DF-A180-220 Bearing

FAG 30220-A-DF-A180-220 tapered roller bearings

Also known as : 30220-A-DF-A180-220,

  • Inside Diameter: 100 mm
  • Outside Diameter: 180 mm
  • Width: 74 mm
  • Basic dynamic load rating: 430 kN
  • Basic static load rating: 650 kN

Inquire Now


FAG 30220-A-DF-A180-220 Bearing

FAG 30220-A-DF-A180-220 Bearing details

model30220-A-DF-A180-220
d100 mm
D180 mm
2T74 mm
2B68 mm
A16 mm
Ca min5 mm
Da max168 mm
Da min157 mm
da max116 mm
r3,4 min2.5 mm
rb max2.5 mm
Cr430000 N, Basic dynamic load rating, radial
C0r650000 N, Basic static load rating, radial
Limiting speed4000 1/min
Reference speed2650 1/min
Cur71000 N, Fatigue limit load, radial
e0.42
Y01.57
Y11.61
Y22.39
mass7.82 kg

Nodes bearings have FAG 30220-A-DF-A180-220 roller bearings in stock, more related FAG bearings: FAG tapered roller bearings catalogue, main dimensions to DIN ISO 355 / DIN 720, separable, for fitting in pairs in X arrangement, with axial internal clearance.

FAG 30220-A-DF-A180-220 bearing cross reference

FAG 30220-A bearing
100mm x 180mm x 37mm
FAG 30220-XL bearing
100mm x 180mm x 37mm
FAG 30320-A bearing
100mm x 215mm x 51.5mm

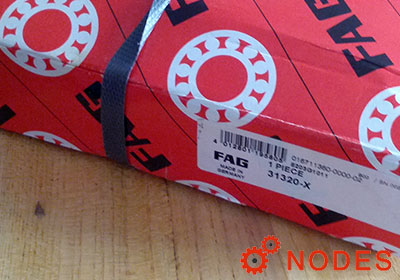

FAG 31320-X bearing
100mm x 215mm x 56.5mm

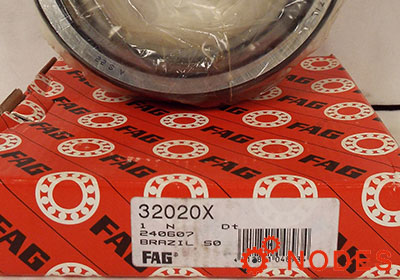

FAG 32020-X bearing
100mm x 150mm x 32mm
FAG 32020-X-XL bearing
100mm x 150mm x 32mm

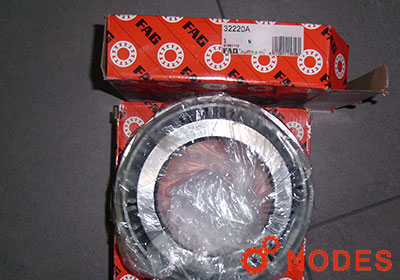

FAG 32220-A bearing
100mm x 180mm x 49mm
FAG 32220-XL bearing
100mm x 180mm x 49mm
FAG 32320-A bearing
100mm x 215mm x 77.5mm
FAG 32320-B bearing
100mm x 215mm x 77.5mm
FAG 32320-B-XL bearing
100mm x 215mm x 77.5mm
FAG 32920 bearing
100mm x 140mm x 25mm
