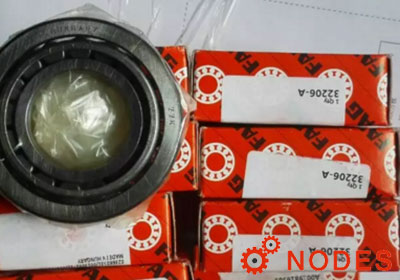

FAG 32206-XL Bearing

FAG 32206-XL tapered roller bearings

Also known as : 32206-XL, T3DC030,

  • Inside Diameter: 30 mm
  • Outside Diameter: 62 mm
  • Width: 21.25 mm
  • Basic dynamic load rating: 63 kN
  • Basic static load rating: 62 kN

Inquire Now


FAG 32206-XL Bearing

FAG 32206-XL Bearing details

model 32206-XL
Comparative designation
to DIN ISO 355
T3DC030
d 30 mm
D 62 mm
T 21.25 mm
a 16 mm
B 20 mm
C 17 mm
Ca min 3 mm
Cb min 4 mm
Da max 56 mm
Da min 52 mm
Db min 59 mm
d1 46.8 mm
da max 37 mm
db min 36 mm
r1,2 min 1 mm
r3,4 min 1 mm
ra max 1 mm
rb max 1 mm
Cr 63000 N, Basic dynamic load rating, radial
C0r 62000 N, Basic static load rating, radial
Limiting speed 12100 1/min
Reference speed 6800 1/min
Cur 9700 N, Fatigue limit load, radial
e 0.37
Y 1.6
Y0 0.88
mass 0.28 kg

Nodes bearings have FAG 32206-XL roller bearings in stock, more related FAG bearings: FAG tapered roller bearings catalogue, main dimensions to DIN ISO 355 / DIN 720, separable, adjusted or in pairs.

FAG 32206-XL bearing cross reference

FAG 30206-A bearing
30mm x 62mm x 17.25mm
FAG 30206-XL bearing
30mm x 62mm x 17.25mm
FAG 30306-A bearing
30mm x 72mm x 20.75mm
FAG 30306-XL bearing
30mm x 72mm x 20.75mm
FAG 31306-A bearing
30mm x 72mm x 20.75mm

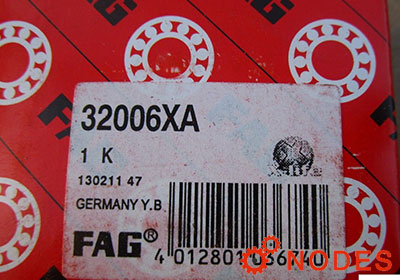

FAG 32006-X bearing
