IKO CF24-1BUUR cam followers
Also known as : CF24-1BUUR, KR72-PP
- D: 72 mm
- d1: 24 mm
- C: 29 mm
- Cr: 30500 kN
- C0r: 52600 kN
IKO CF24-1BUUR

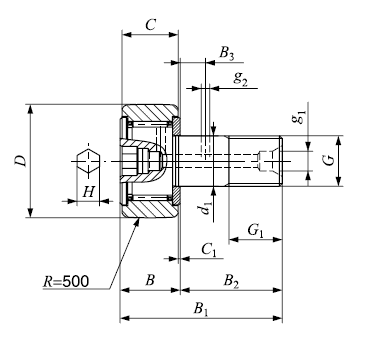

IKO CF24-1BUUR Cam Follower Bearing details
| model |
CF24-1BUUR Crowned outer ring |
|---|---|
| D | 72 mm |
| C | 29 mm |
| d1 | 24 mm |
| G | M24x1.5 |
| G1 | 25 mm |
| B | 30.6max mm |
| B1 | 80.1max mm |
| B2 | 49.5 mm |
| B3 | 11 mm |
| C1 | 0.8 mm |
| g1 | 6 mm |
| g2 | 4 mm |
| H | 12 mm |
| rs min | 1 mm |
| fmin | 40 mm, Mounting dimension |
| Maximum tightening torque | 215 N.m |
| C | 30500 N, Basic dynamic load rating |
| C0 | 52600 N, Basic static load rating |
| Maximum allowable load | 52000 N |
| Mass | 1140 g (approx.) |
IKO CF24-1BUUR cam followers, Cam follower bearings, Crowned outer ring, Sealed type.
IKO CF24-1BUUR bearing cross reference
INA KR72-PP bearing
D:72mm, d1:24mm, B:80mm
IKO CF24-1BR bearing
D:72mm, d1:24mm, C:29mm
IKO CF24-1B bearing
D:72mm, d1:24mm, C:29mm
