IKO CRW9-200 C12 way guides

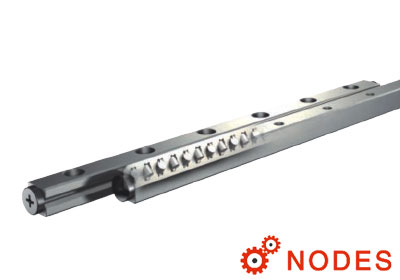

IKO CRW9-200 C12 cross roller way guides

Also known as : CRW9-200 C12, SV9200, NV9200

  • Width: 44 mm
  • High: 22 mm
  • Way Length: 200 mm
  • Cr: 7.19 kN
  • C0r: 6.6 kN

Inquire Now


IKO CRW9-200 C12

IKO CRW9-200 C12 crossed roller guide way details

Identification number CRW9-200 C12
Mass - Way 3.3 kg/m
Mass - Roller cage 64.8 g
(shows the mass of a roller cage with ten cylindrical rollers)
A 44 mm
H 22 mm
L(n X F) 200 (1 x 100) mm
E 50 mm
Dw 9 mm
R 173 mm
Z 12
p 14 mm
e 9.5 mm
W 20.2 mm
g 9 mm
M M8
d1 6.8 mm
d2 10.5 mm
h 6.2 mm
t 3 mm
Cu 7190 N, Basic dynamic load rating
the value shows the load of a cylindrical roller.
C0u 6600 N, Basic static load rating
the value shows the load of a cylindrical roller.
Fu 2200 N, Allowable load
the value shows the load of a cylindrical roller.

As IKO bearings distributor, Nodes bearings has IKO CRW9-200 C12 linear crossed roller way guides in stock.
