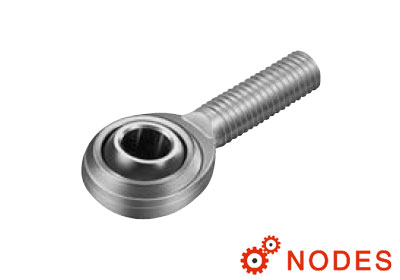

IKO POS12 rod end bearing

IKO POS12 rod ends | d:12,d2:30,l2:69mm

Also known as : POS12

  • d: 12 mm
  • d2: 30 mm
  • Height: 69 mm
  • Basic dynamic load rating: 13.1 kN
  • Basic static load rating: 16.9 kN

Inquire Now


IKO POS12

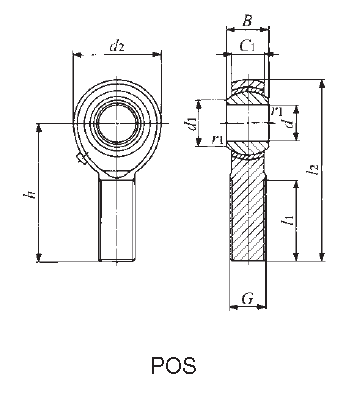

IKO POS12 Bearing details

Identification number POS12
Type Lubrication type PILLOBALL Rod ends
Mass 85 g
d 12 mm
Thread G M12X1.75
d2 30 mm
C1 12 mm
B 16 mm
d1 15.4 mm
l2 69 mm
h 54 mm
l1 33 mm
r1s min 0.2 mm
Ball dia. 22.225 mm
Dynamic load capacity 13.1 kN
Static load capacity 13.1 kN

IKO POS12 rod ends is available from stock, Lubrication type PILLOBALL rod ends Insert type/With Male Thread.
