IKO POSB3 rod ends | d:4.826,D:15.88,L:39.7mm
Also known as : POSB3
- d: 4.826 mm
- d2: 15.88 mm
- Height: 39.7 mm
- Basic dynamic load rating: 3.45 kN
- Basic static load rating: 4.85 kN
IKO POSB3

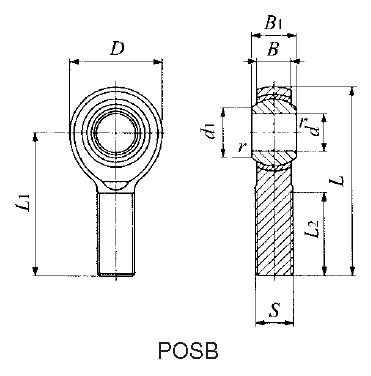

IKO POSB3 Bearing details
| Identification number | POSB3 |
|---|---|
| Type | Inch series PILLOBALL Rod ends |
| Mass | 14 g |
| d | 4.826 mm |
| Thread S | -32UNF |
| D | 15.88 mm |
| B | 6.35 mm |
| B1 | 7.92 mm |
| d1 | 7.77 mm |
| L | 39.7 mm |
| L1 | 31.75 mm |
| L2 | 19.05 mm |
| rs min | 0.3 mm |
| Ball dia. | 11.112 mm |
| Dynamic load capacity | 3.45 kN |
| Static load capacity | 4.85 kN |
IKO POSB3 rod ends is available from stock, Inch series PILLOBALL rod ends Insert type/With Male Thread.
