INA 3203 Bearing

INA 3203 bearings

Also known as : 3203

  • Inside Diameter: 17 mm
  • Outside Diameter: 40 mm
  • Width: 17.5 mm
  • Basic dynamic load rating: 15.5 kN
  • Basic static load rating: 9.5 kN

Inquire Now


INA 3203 Bearing

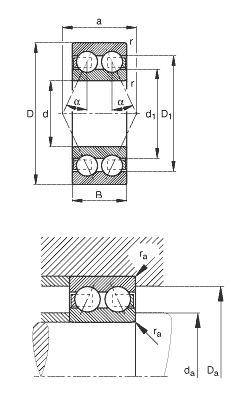

INA 3203 Bearing details

d 17 mm
D 40 mm
B 17,5 mm
a 23,501 mm
D1 33,9 mm
Da max 35,8 mm
d1 25,8 mm
da min 21,2 mm
ra max 0,6 mm
rmin 0,6 mm
α 30 °  Contact angle
m 0,094 kg  Mass
Cr 15500 N  Basic dynamic load rating, radial
C0r 9500 N  Basic static load rating, radial
Cur 640 N  Fatigue limit load, radial
nG 19400 1/min  Limiting speed
nB 16600 1/min  Reference speed

As INA bearing distributor, Nodes bearings have INA 3203 angular contact ball bearings in stock.

INA 3203 bearing cross reference

SKF 3203 ATN9/C3 bearing
17mm x 40mm x 17.5mm

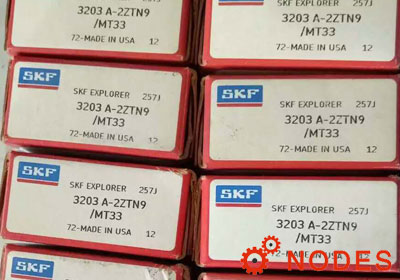

SKF 3203 A-2ZTN9/MT33 bearing
17mm x 40mm x 17.5mm
INA 3203-C3 bearing
17mm x 40mm x 17.5mm
FAG 3203-BD-XL bearing
17mm x 40mm x 17.5mm
FAG 3203-BD-XL-TVH bearing
17mm x 40mm x 17.5mm
