INA NKIB5913-XL combined needle bearings | 65x90x38mm
Also known as : NKIB5913-XL
- Inside Diameter: 65 mm
- Outside Diameter: 90 mm
- Width: 38 mm
- Basic dynamic load rating: 12.8 kN
- Basic static load rating: 34 kN
INA NKIB5913-XL Bearing
INA NKIB5913-XL Bearing details
| Number | NKIB5913-XL | |
|---|---|---|
| Type |
Needle roller bearings Needle roller/angular contact ball bearings NKIA |
|
| d | 65 mm | |
| D | 90 mm | |
| B | 38 mm | |
| C | 34 mm | |
| F | 72 mm | |
| rmin | 1 mm | |
| m | 640 g | Mass |
| Cr | 69000 N | Basic dynamic load rating, radial |
| C0r | 112000 N | Basic static load rating, radial |
| Ca | 12800 N | Basic dynamic load rating, axial |
| C0a | 34000 N | Basic static load rating, axial |
| Cur | 19500 N | Fatigue limit load, radial |
| Cua | 1510 N | Fatigue limit load, axial |
| nG | 6300 1/min | Limiting speed |
| nB | 5500 1/min | Reference speed |
As INA bearing distributor, Nodes bearings have INA NKIB5913-XL Needle roller/angular contact ball bearings in stock. NKIB5913-XL is double direction axial component.
INA NKIB5913-XL bearing cross reference

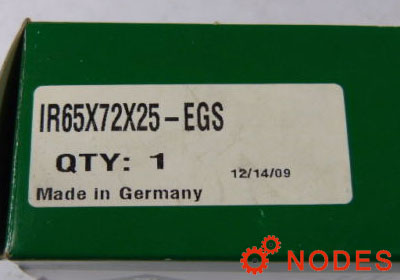

INA IR65X72X25-XL bearing
65mm x 72mm x 25mm
INA IR65X72X45-XL bearing
65mm x 72mm x 45mm
INA IR65X73X25-XL bearing
65mm x 73mm x 25mm
INA IR65X73X35-XL bearing
65mm x 73mm x 35mm
INA IR65X75X28-XL bearing
65mm x 75mm x 28mm
INA NA4913-XL bearing
65mm x 90mm x 25mm
INA NA6913-ZW-XL bearing
65mm x 90mm x 45mm
INA NK65/25-XL bearing
65mm x 78mm x 25mm

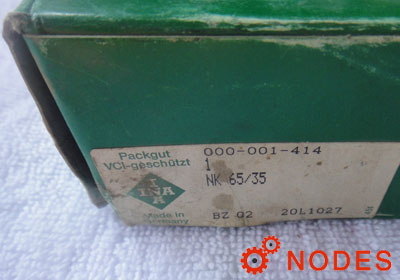

INA NK65/35-XL bearing
65mm x 78mm x 35mm

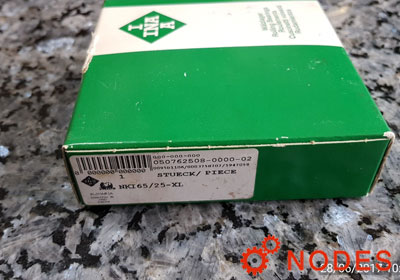

INA NKI65/25-XL bearing
65mm x 90mm x 25mm
INA NKI65/35-XL bearing
65mm x 90mm x 35mm
