INA NKX25-Z-XL Bearing

INA NKX25-Z-XL combined needle bearings | 25x37x30mm

Also known as : NKX25-Z-XL

  • Inside Diameter: 25 mm
  • Outside Diameter: 37 mm
  • Width: 30 mm
  • Basic dynamic load rating: 19.6 kN
  • Basic static load rating: 37.5 kN

Inquire Now


INA NKX25-Z-XL Bearing

INA NKX25-Z-XL Bearing details

Number NKX25-Z-XL
Type Needle roller bearings
Needle roller/axial ball bearings

Fw 25 mm
D 37 mm
C 30 mm  Tolerance: 0/-0,25
C1 11 mm  Tolerance: 0/-0,2
C2 9,5 mm
D2 max 43,2 mm
da 37,7 mm
dw 25 mm  Tolerance: E8
ra max 0,6 mm
rmin 0,6 mm
m 132 g  Mass
Cr 21300 N  Basic dynamic load rating, radial
C0r 30500 N  Basic static load rating, radial
Ca 19600 N  Basic dynamic load rating, axial
C0a 37500 N  Basic static load rating, axial
Cur 5300 N  Fatigue limit load, radial
Cua 1790 N  Fatigue limit load, axial
nG 6000 1/min  Limiting speed
  IR20X25X20-XL  Suitable inner ring

As INA bearing distributor, Nodes bearings have INA NKX25-Z-XL Needle roller/axial ball bearings in stock. NKX25-Z-XL is axial component, single direction, to DIN 5429, with end cap, for grease lubrication.

INA NKX25-Z-XL bearing cross reference

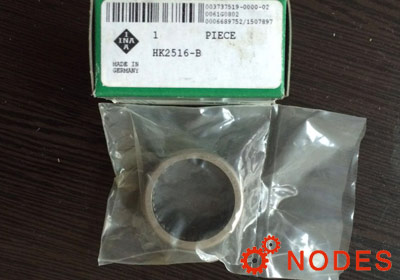

INA HK2516 bearing
25mm x 32mm x 16mm
INA HK2520 bearing
25mm x 32mm x 20mm

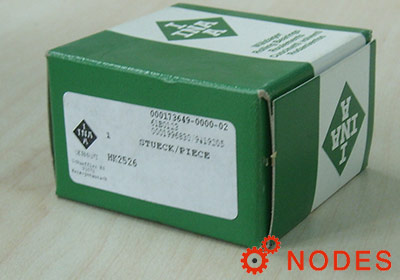

INA HK2526 bearing
25mm x 32mm x 26mm
INA HK2512 bearing
25mm x 32mm x 12mm
INA HK2538-ZW bearing
25mm x 32mm x 38mm

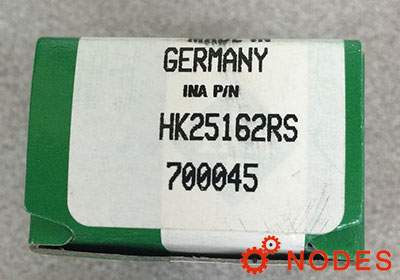

INA HK2516-2RS bearing
25mm x 32mm x 16mm

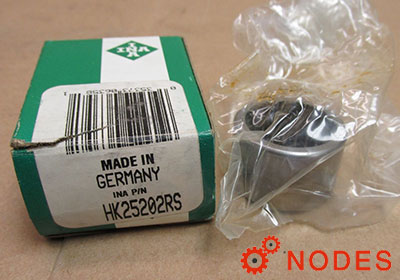

INA HK2520-2RS bearing
