INA RNAO5X10X8-TV-XL Bearing

INA RNAO5X10X8-TV-XL needle bearings

Also known as : RNAO5X10X8-TV-XL , RNAF5108

  • Inside Diameter: 5 mm
  • Outside Diameter: 10 mm
  • Width: 8 mm
  • Basic dynamic load rating: 2.65 kN
  • Basic static load rating: 1.92 kN

Inquire Now


INA RNAO5X10X8-TV-XL Bearing

INA RNAO5X10X8-TV-XL Bearing details

Fw 5 mm
D 10 mm
C 8 mm
Da 8,3 mm
Db 5,3 mm
db 7,7 mm
E 8 mm
ra max 0,1 mm
rmin 0,15 mm
m 3 g  Mass
Cr 2650 N  Basic dynamic load rating, radial
C0r 1920 N  Basic static load rating, radial
Cur 295 N  Fatigue limit load, radial
nG 39000 1/min  Limiting speed
nB 53000 1/min  Reference speed

As INA bearing distributor, Nodes bearings have INA RNAO5X10X8-TV-XL needle bearings in stock, without ribs.

INA RNAO5X10X8-TV-XL bearing cross reference

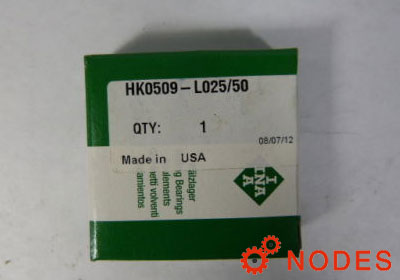

INA HK0509 bearing
5mm x 9mm x 9mm
IKO RNAF5108N bearing
5mm * 10mm * 8mm
INA IR5X8X12-XL bearing
5mm x 8mm x 12mm
INA IR5X8X16-XL bearing
5mm x 8mm x 16mm
INA NK5/10-TV-XL bearing
5mm x 10mm x 10mm
INA NK5/12-TV-XL bearing
5mm x 10mm x 12mm
INA NKI5/12-TV-XL bearing
5mm x 15mm x 12mm
INA NKI5/16-TV-XL bearing
5mm x 15mm x 16mm
INA K5X8X8-TV bearing
5mm x 8mm x 8mm
INA K5X8X10-TV bearing
5mm x 8mm x 10mm
