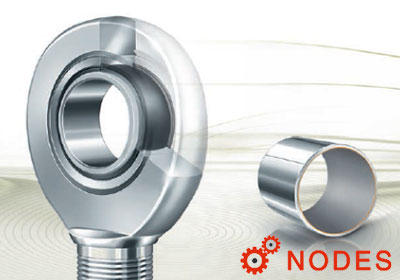

INA spherical plain bearings, rod ends, plain bushings, thrust washers, strips

INA spherical plain bearings are ready-to-fit precision machine elements. Due to the outer ring with its concave inner slideway and the inner ring with its curved outer slideway, they can perform spatial adjustment motions. The bearings can support static loads and are suitable for tilt and swivel motion.

INA Rod ends are spherical plain bearing units. They comprise a housing and integral shank, into which a spherical plain bearing is integrated, and have an external or internal thread.

INA Spherical plain bearings and rod ends are available in numerous designs, dimension series and versions.

INA Plain bushes, thrust washers and strips are used not only for rotary and oscillating motion but also for linear motion with short or long stroke lengths.

Displaying 477 INA plain bearings.

INA

INA GAL12-DO Rod ends | d:12,d2:34,l2:71mm

Nodes bearings have INA GAL12-DO Rod end bearings in stock, GAL12-DO bearings dimensions: d:12,d2:34,l4:71mm, Cr: 10800N, C0r: 30200N, with external thread, requiring maintenance, to DIN ISO 12 240-4, left hand thread.

Brand: INA
Inside Diameter: 12 mm
Outside Diameter: 34 mm
Width: 71 mm
Basic dynamic load rating: 10.8 kN
Basic static load rating: 10.8 kN

INA

INA GAL17-DO Rod ends | d:17,d2:46,l2:92mm

Nodes bearings have INA GAL17-DO Rod end bearings in stock, GAL17-DO bearings dimensions: d:17,d2:46,l4:92mm, Cr: 21300N, C0r: 56500N, with external thread, requiring maintenance, to DIN ISO 12 240-4, left hand thread.

Brand: INA
Inside Diameter: 17 mm
Outside Diameter: 46 mm
Width: 92 mm
Basic dynamic load rating: 21.3 kN
Basic static load rating: 21.3 kN

INA

INA GAL20-DO Rod ends | d:20,d2:53,l2:104.5mm

Nodes bearings have INA GAL20-DO Rod end bearings in stock, GAL20-DO bearings dimensions: d:20,d2:53,l4:104.5mm, Cr: 29600N, C0r: 75600N, with external thread, requiring maintenance, to DIN ISO 12 240-4, left hand thread.

Brand: INA
Inside Diameter: 20 mm
Outside Diameter: 53 mm
Width: 104.5 mm
Basic dynamic load rating: 29.6 kN
Basic static load rating: 29.6 kN

INA

INA GAL30-DO Rod ends | d:30,d2:73,l2:146.5mm

Nodes bearings have INA GAL30-DO Rod end bearings in stock, GAL30-DO bearings dimensions: d:30,d2:73,l4:146.5mm, Cr: 62300N, C0r: 119000N, with external thread, requiring maintenance, to DIN ISO 12 240-4, left hand thread.

Brand: INA
Inside Diameter: 30 mm
Outside Diameter: 73 mm
Width: 146.5 mm
Basic dynamic load rating: 62.3 kN
Basic static load rating: 62.3 kN

INA

INA GE8-UK plain bearings | 8x16x8mm

Nodes bearings have INA GE8-UK bearings in stock, Radial spherical plain bearings, GE8-UK bearings dimensions: 8mm x 16mm x 8mm, Cr: 5850N, C0r: 14600N.

Brand: INA
Inside Diameter: 8 mm
Outside Diameter: 16 mm
Width: 8 mm
Basic dynamic load rating: 5.85 kN
Basic static load rating: 5.85 kN

INA

INA GE17-FW plain bearings | 17x35x20mm

Nodes bearings have INA GE17-FW bearings in stock, Radial spherical plain bearings, GE17-FW bearings dimensions: 17mm x 35mm x 20mm, Cr: 31300N, C0r: 78300N.

Brand: INA
Inside Diameter: 17 mm
Outside Diameter: 35 mm
Width: 20 mm
Basic dynamic load rating: 31.3 kN
Basic static load rating: 31.3 kN

INA

INA GE40-DO plain bearings | 40x62x28mm

Nodes bearings have INA GE40-DO bearings in stock, Radial spherical plain bearings, GE40-DO bearings dimensions: 40mm x 62mm x 28mm, Cr: 99100N, C0r: 496000N.

Brand: INA
Inside Diameter: 40 mm
Outside Diameter: 62 mm
Width: 28 mm
Basic dynamic load rating: 99.1 kN
Basic static load rating: 99.1 kN

INA

INA GE60-DO plain bearings | 60x90x44mm

Nodes bearings have INA GE60-DO bearings in stock, Radial spherical plain bearings, GE60-DO bearings dimensions: 60mm x 90mm x 44mm, Cr: 245000N, C0r: 1220000N.

Brand: INA
Inside Diameter: 60 mm
Outside Diameter: 90 mm
Width: 44 mm
Basic dynamic load rating: 245 kN
Basic static load rating: 245 kN

INA

INA GE30-DO-2RS plain bearings | 30x47x22mm

Nodes bearings have INA GE30-DO-2RS bearings in stock, Radial spherical plain bearings, GE30-DO-2RS bearings dimensions: 30mm x 47mm x 22mm, Cr: 62300N, C0r: 311000N.

Brand: INA
Inside Diameter: 30 mm
Outside Diameter: 47 mm
Width: 22 mm
Basic dynamic load rating: 62.3 kN
Basic static load rating: 62.3 kN

INA

INA GE40-DO-2RS plain bearings | 40x62x28mm

Nodes bearings have INA GE40-DO-2RS bearings in stock, Radial spherical plain bearings, GE40-DO-2RS bearings dimensions: 40mm x 62mm x 28mm, Cr: 99100N, C0r: 496000N.

Brand: INA
Inside Diameter: 40 mm
Outside Diameter: 62 mm
Width: 28 mm
Basic dynamic load rating: 99.1 kN
Basic static load rating: 99.1 kN

INA

INA GE50-DO-2RS plain bearings | 50x75x35mm

Nodes bearings have INA GE50-DO-2RS bearings in stock, Radial spherical plain bearings, GE50-DO-2RS bearings dimensions: 50mm x 75mm x 35mm, Cr: 157000N, C0r: 785000N.

Brand: INA
Inside Diameter: 50 mm
Outside Diameter: 75 mm
Width: 35 mm
Basic dynamic load rating: 157 kN
Basic static load rating: 157 kN

INA

INA GE45-FO-2RS plain bearings | 45x75x43mm

Nodes bearings have INA GE45-FO-2RS bearings in stock, Radial spherical plain bearings, GE45-FO-2RS bearings dimensions: 45mm x 75mm x 43mm, Cr: 157000N, C0r: 785000N.

Brand: INA
Inside Diameter: 45 mm
Outside Diameter: 75 mm
Width: 43 mm
Basic dynamic load rating: 157 kN
Basic static load rating: 157 kN

INA

INA GE60-FO-2RS plain bearings | 60x105x63mm

Nodes bearings have INA GE60-FO-2RS bearings in stock, Radial spherical plain bearings, GE60-FO-2RS bearings dimensions: 60mm x 105mm x 63mm, Cr: 313000N, C0r: 1560000N.

Brand: INA
Inside Diameter: 60 mm
Outside Diameter: 105 mm
Width: 63 mm
Basic dynamic load rating: 313 kN
Basic static load rating: 313 kN

INA

INA GE50-UK-2RS plain bearings | 50x75x35mm

Nodes bearings have INA GE50-UK-2RS bearings in stock, Radial spherical plain bearings, GE50-UK-2RS bearings dimensions: 50mm x 75mm x 35mm, Cr: 444000N, C0r: 739000N.

Brand: INA
Inside Diameter: 50 mm
Outside Diameter: 75 mm
Width: 35 mm
Basic dynamic load rating: 444 kN
Basic static load rating: 444 kN

INA

INA GE50-SX plain bearings | 50x80x20mm

Nodes bearings have INA GE50-SX bearings in stock, Angular contact spherical plain bearings, GE50-SX bearings dimensions: 50mm x 80mm x 20mm, Cr: 118000N, C0r: 592000N.

Brand: INA
Inside Diameter: 50 mm
Outside Diameter: 80 mm
Width: 20 mm
Basic dynamic load rating: 118 kN
Basic static load rating: 118 kN

INA

INA GE30-SW plain bearings | 30x55x17mm

Nodes bearings have INA GE30-SW bearings in stock, Angular contact spherical plain bearings, GE30-SW bearings dimensions: 30mm x 55mm x 17mm, Cr: 194000N, C0r: 323000N.

Brand: INA
Inside Diameter: 30 mm
Outside Diameter: 55 mm
Width: 17 mm
Basic dynamic load rating: 194 kN
Basic static load rating: 194 kN

INA

INA GE360-DW plain bearings | 360x480x160mm

Nodes bearings have INA GE360-DW bearings in stock, Radial spherical plain bearings, GE360-DW bearings dimensions: 360mm x 480mm x 160mm, Cr: 17010000N, C0r: 28350000N.

Brand: INA
Inside Diameter: 360 mm
Outside Diameter: 480 mm
Width: 160 mm
Basic dynamic load rating: 17010 kN
Basic static load rating: 17010 kN

INA

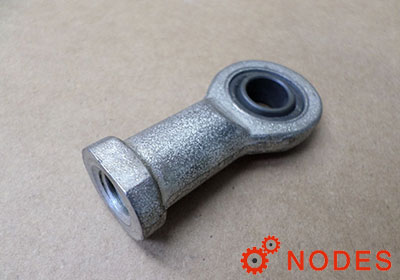

INA GIL10-DO Rod ends | d:10,d2:29,l4:57.5mm

Nodes bearings have INA GIL10-DO none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, left hand thread, GIL10-DO bearings dimensions: d:10,d2:29,l4:57.5mm, Cr: 8160N, C0r: 22000N.

Brand: INA
Inside Diameter: 10 mm
Outside Diameter: 29 mm
Width: 57.5 mm
Basic dynamic load rating: 8.16 kN
Basic static load rating: 8.16 kN

INA

INA GIL8-DO Rod ends | d:8,d2:24,l4:48mm

Nodes bearings have INA GIL8-DO none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, left hand thread, GIL8-DO bearings dimensions: d:8,d2:24,l4:48mm, Cr: 5590N, C0r: 16000N.

Brand: INA
Inside Diameter: 8 mm
Outside Diameter: 24 mm
Width: 48 mm
Basic dynamic load rating: 5.59 kN
Basic static load rating: 5.59 kN

INA

INA GIL17-DO Rod ends | d:17,d2:46,l4:90mm

Nodes bearings have INA GIL17-DO none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, left hand thread, GIL17-DO bearings dimensions: d:17,d2:46,l4:90mm, Cr: 21300N, C0r: 56500N.

Brand: INA
Inside Diameter: 17 mm
Outside Diameter: 46 mm
Width: 90 mm
Basic dynamic load rating: 21.3 kN
Basic static load rating: 21.3 kN

INA

INA GIL25-DO Rod ends | d:25,d2:64,l4:126mm

Nodes bearings have INA GIL25-DO none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, left hand thread, GIL25-DO bearings dimensions: d:25,d2:64,l4:126mm, Cr: 48300N, C0r: 88300N.

Brand: INA
Inside Diameter: 25 mm
Outside Diameter: 64 mm
Width: 126 mm
Basic dynamic load rating: 48.3 kN
Basic static load rating: 48.3 kN

INA

INA GIR15-DO Rod ends | d:15,d2:40,l4:81mm

Nodes bearings have INA GIR15-DO none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, right hand thread, GIR15-DO bearings dimensions: d:15,d2:40,l4:81mm, Cr: 16900N, C0r: 44800N.

Brand: INA
Inside Diameter: 15 mm
Outside Diameter: 40 mm
Width: 81 mm
Basic dynamic load rating: 16.9 kN
Basic static load rating: 16.9 kN

INA

INA GIR20-DO Rod ends | d:20,d2:53,l4:103.5mm

Nodes bearings have INA GIR20-DO none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, right hand thread, GIR20-DO bearings dimensions: d:20,d2:53,l4:103.5mm, Cr: 29600N, C0r: 75600N.

Brand: INA
Inside Diameter: 20 mm
Outside Diameter: 53 mm
Width: 103.5 mm
Basic dynamic load rating: 29.6 kN
Basic static load rating: 29.6 kN

INA

INA GIR30-DO Rod ends | d:30,d2:73,l4:146.5mm

Nodes bearings have INA GIR30-DO none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, right hand thread, GIR30-DO bearings dimensions: d:30,d2:73,l4:146.5mm, Cr: 62300N, C0r: 119000N.

Brand: INA
Inside Diameter: 30 mm
Outside Diameter: 73 mm
Width: 146.5 mm
Basic dynamic load rating: 62.3 kN
Basic static load rating: 62.3 kN

INA

INA GIL8-UK Rod ends | d:8,d2:24,l4:48mm

Nodes bearings have INA GIL8-UK none in stock, with internal thread, maintenance-free, to DIN ISO 12 240-4, left hand thread, GIL8-UK bearings dimensions: d:8,d2:24,l4:48mm, Cr: 5850N, C0r: 16000N.

Brand: INA
Inside Diameter: 8 mm
Outside Diameter: 24 mm
Width: 48 mm
Basic dynamic load rating: 5.85 kN
Basic static load rating: 5.85 kN

INA

INA GIL10-UK Rod ends | d:10,d2:29,l4:57.5mm

Nodes bearings have INA GIL10-UK none in stock, with internal thread, maintenance-free, to DIN ISO 12 240-4, left hand thread, GIL10-UK bearings dimensions: d:10,d2:29,l4:57.5mm, Cr: 8640N, C0r: 22000N.

Brand: INA
Inside Diameter: 10 mm
Outside Diameter: 29 mm
Width: 57.5 mm
Basic dynamic load rating: 8.64 kN
Basic static load rating: 8.64 kN

INA

INA GIL17-UK Rod ends | d:17,d2:46,l4:90mm

Nodes bearings have INA GIL17-UK none in stock, with internal thread, maintenance-free, to DIN ISO 12 240-4, left hand thread, GIL17-UK bearings dimensions: d:17,d2:46,l4:90mm, Cr: 22500N, C0r: 56500N.

Brand: INA
Inside Diameter: 17 mm
Outside Diameter: 46 mm
Width: 90 mm
Basic dynamic load rating: 22.5 kN
Basic static load rating: 22.5 kN

INA

INA GIR8-UK Rod ends | d:8,d2:24,l4:48mm

Nodes bearings have INA GIR8-UK none in stock, with internal thread, maintenance-free, to DIN ISO 12 240-4, right hand thread, GIR8-UK bearings dimensions: d:8,d2:24,l4:48mm, Cr: 5850N, C0r: 16000N.

Brand: INA
Inside Diameter: 8 mm
Outside Diameter: 24 mm
Width: 48 mm
Basic dynamic load rating: 5.85 kN
Basic static load rating: 5.85 kN

INA

INA GIR15-UK Rod ends | d:15,d2:40,l4:81mm

Nodes bearings have INA GIR15-UK none in stock, with internal thread, maintenance-free, to DIN ISO 12 240-4, right hand thread, GIR15-UK bearings dimensions: d:15,d2:40,l4:81mm, Cr: 17800N, C0r: 44800N.

Brand: INA
Inside Diameter: 15 mm
Outside Diameter: 40 mm
Width: 81 mm
Basic dynamic load rating: 17.8 kN
Basic static load rating: 17.8 kN

INA

INA GIR20-UK Rod ends | d:20,d2:53,l4:103.5mm

Nodes bearings have INA GIR20-UK none in stock, with internal thread, maintenance-free, to DIN ISO 12 240-4, right hand thread, GIR20-UK bearings dimensions: d:20,d2:53,l4:103.5mm, Cr: 31300N, C0r: 75600N.

Brand: INA
Inside Diameter: 20 mm
Outside Diameter: 53 mm
Width: 103.5 mm
Basic dynamic load rating: 31.3 kN
Basic static load rating: 31.3 kN

INA

INA GIR30-UK Rod ends | d:30,d2:73,l4:146.5mm

Nodes bearings have INA GIR30-UK none in stock, with internal thread, maintenance-free, to DIN ISO 12 240-4, right hand thread, GIR30-UK bearings dimensions: d:30,d2:73,l4:146.5mm, Cr: 65900N, C0r: 139000N.

Brand: INA
Inside Diameter: 30 mm
Outside Diameter: 73 mm
Width: 146.5 mm
Basic dynamic load rating: 65.9 kN
Basic static load rating: 65.9 kN

INA

INA GIL40-DO-2RS Rod ends | d:40,d2:92,l4:188mm

Nodes bearings have INA GIL40-DO-2RS none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, lip seals on both sides, left hand thread, GIL40-DO-2RS bearings dimensions: d:40,d2:92,l4:188mm, Cr: 99100N, C0r: 194000N.

Brand: INA
Inside Diameter: 40 mm
Outside Diameter: 92 mm
Width: 188 mm
Basic dynamic load rating: 99.1 kN
Basic static load rating: 99.1 kN

INA

INA GIL50-DO-2RS Rod ends | d:50,d2:112,l4:216mm

Nodes bearings have INA GIL50-DO-2RS none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, lip seals on both sides, left hand thread, GIL50-DO-2RS bearings dimensions: d:50,d2:112,l4:216mm, Cr: 157000N, C0r: 314000N.

Brand: INA
Inside Diameter: 50 mm
Outside Diameter: 112 mm
Width: 216 mm
Basic dynamic load rating: 157 kN
Basic static load rating: 157 kN

INA

INA GIL80-DO-2RS Rod ends | d:80,d2:180,l4:320mm

Nodes bearings have INA GIL80-DO-2RS none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, lip seals on both sides, left hand thread, GIL80-DO-2RS bearings dimensions: d:80,d2:180,l4:320mm, Cr: 402000N, C0r: 690000N.

Brand: INA
Inside Diameter: 80 mm
Outside Diameter: 180 mm
Width: 320 mm
Basic dynamic load rating: 402 kN
Basic static load rating: 402 kN

INA

INA GIR40-DO-2RS Rod ends | d:40,d2:92,l4:188mm

Nodes bearings have INA GIR40-DO-2RS none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, lip seals on both sides, right hand thread, GIR40-DO-2RS bearings dimensions: d:40,d2:92,l4:188mm, Cr: 99100N, C0r: 194000N.

Brand: INA
Inside Diameter: 40 mm
Outside Diameter: 92 mm
Width: 188 mm
Basic dynamic load rating: 99.1 kN
Basic static load rating: 99.1 kN

INA

INA GIR60-DO-2RS Rod ends | d:60,d2:135,l4:242.5mm

Nodes bearings have INA GIR60-DO-2RS none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, lip seals on both sides, right hand thread, GIR60-DO-2RS bearings dimensions: d:60,d2:135,l4:242.5mm, Cr: 245000N, C0r: 485000N.

Brand: INA
Inside Diameter: 60 mm
Outside Diameter: 135 mm
Width: 242.5 mm
Basic dynamic load rating: 245 kN
Basic static load rating: 245 kN

INA

INA GIR70-DO-2RS Rod ends | d:70,d2:160,l4:280mm

Nodes bearings have INA GIR70-DO-2RS none in stock, with internal thread, requiring maintenance, to DIN ISO 12 240-4, lip seals on both sides, right hand thread, GIR70-DO-2RS bearings dimensions: d:70,d2:160,l4:280mm, Cr: 313000N, C0r: 564000N.

Brand: INA
Inside Diameter: 70 mm
Outside Diameter: 160 mm
Width: 280 mm
Basic dynamic load rating: 313 kN
Basic static load rating: 313 kN

INA

INA GIL40-UK-2RS Rod ends | d:40,d2:92,l4:188mm

Nodes bearings have INA GIL40-UK-2RS none in stock, with internal thread, maintenance-free, to DIN ISO 12 240-4, lip seals on both sides, left hand thread, GIL40-UK-2RS bearings dimensions: d:40,d2:92,l4:188mm, Cr: 277000N, C0r: 194000N.

Brand: INA
Inside Diameter: 40 mm
Outside Diameter: 92 mm
Width: 188 mm
Basic dynamic load rating: 277 kN
Basic static load rating: 277 kN
