INA GAL30-DO rod end bearing

INA GAL30-DO Rod ends | d:30,d2:73,l2:146.5mm

Also known as : GAL30-DO

  • d: 30 mm
  • d2: 73 mm
  • Height: 146.5 mm
  • Basic dynamic load rating: 62.3 kN
  • Basic static load rating: 119 kN

Inquire Now

INA GAL30-DO Bearing

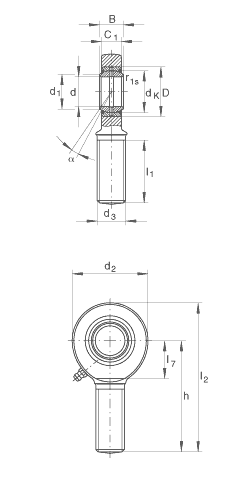

INA GAL30-DO Bearing details

Number GAL30-DO
Type Rod ends
with external thread, requiring maintenance, to DIN ISO 12 240-4, left hand thread

d 30 mm  Tolerance: 0/-0,01
d2 73 mm
l2 146,5 mm
B 22 mm  Tolerance: 0/-0,12
C1 19 mm
D 47 mm
d1 34,2 mm
d3 M30x2
dK 40,7 mm
h 110 mm
l1 65 mm
l7 37 mm
r1s min 0,6 mm  Chamfer dimension
α 6 °
m 0,89 kg  Mass
Cr 62300 N  Basic dynamic load rating, radial
C0r 119000 N  Basic static load rating, radial
Basic load rating of housing

As INA bearing distributor, Nodes bearings have INA GAL30-DO none in stock. GAL30-DO, with external thread, requiring maintenance, to DIN ISO 12 240-4, left hand thread.
