INA GE60-DO Bearing

INA GE60-DO plain bearings | 60x90x44mm

Also known as : GE60-DO

  • Inside Diameter: 60 mm
  • Outside Diameter: 90 mm
  • Width: 44 mm
  • Basic dynamic load rating: 245 kN
  • Basic static load rating: 1220 kN

Inquire Now


INA GE60-DO Bearing

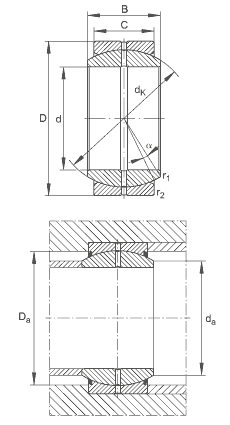

INA GE60-DO Bearing details

Number GE60-DO
Type Spherical plain bearings
d 60 mm  Tolerance: 0/-0,015
D 90 mm  Tolerance: 0/-0,015
B 44 mm  Tolerance: 0/-0,15
C 36 mm  Tolerance: 0/-0,4
Da min 75 mm
da max 66,8 mm
dK 80 mm
r1s min 1 mm  Chamfer dimension
r2s min 1 mm  Chamfer dimension
α 6 °
m 1 kg  Mass
Cr 245000 N  Basic dynamic load rating, radial
C0r 1220000 N  Basic static load rating, radial

As INA bearing distributor, Nodes bearings have INA GE60-DO radial spherical plain bearings in stock. GE60-DO, requiring maintenance, to DIN ISO 12 240-1.

INA GE60-DO bearing cross reference

IKO GE60EC-2RS bearing
60mm x 90mm x 44mm
IKO GE60ES bearing
60mm x 90mm x 44mm
IKO GE60ES-2RS bearing
60mm x 90mm x 44mm
IKO GE60GS bearing
60mm x 105mm x 63mm
IKO GE60GS-2RS bearing
60mm x 105mm x 63mm
SKF GE60ES bearing
60mm x 90mm x 44mm
INA GE60-DO-2RS bearing
60mm x 90mm x 44mm
INA GE60-FO-2RS bearing
60mm x 105mm x 63mm
INA GE60-HO-2RS bearing
60mm x 90mm x 54mm
INA GE60-UK-2RS bearing
60mm x 90mm x 44mm
INA GE60-FW-2RS bearing
60mm x 105mm x 63mm
INA GE60-SX bearing
60mm x 95mm x 23mm
