As INA bearings distributor, Nodes have INA track roller bearings in stock. INA track rollers are self-retaining, single or double row units with particularly thick-walled outer rings. These INA bearings can support axial forces in both directions as well as high radial forces. Track rollers bearing outer rings have a crowned or cylindrical outside surface. Designs with a crowned outside surface are used where there is misalignment in relation to the raceway and edge stresses must be avoided. The track rollers are available with an inner ring, with a stud and with a plastic tyre on the outer ring.
INA LR5207-X-2Z-TVH-XL track rollers
INA LR5207-X-2Z-TVH-XL track rollers, Brand: INA, cylindrical outside surface, double row, sealed on both sides, Dimensions: 35mm x 80mm x 27mm, Crw: 33000N, C0rw: 26500N.
- Brand: INA
- Inside Diameter: 35 mm
- Outside Diameter: 80 mm
- Width: 27 mm
- Basic dynamic load rating: 33 kN
- Basic static load rating: 33 kN
INA LR5208-X-2Z-TVH-XL track rollers
INA LR5208-X-2Z-TVH-XL track rollers, Brand: INA, cylindrical outside surface, double row, sealed on both sides, Dimensions: 40mm x 85mm x 30.2mm, Crw: 36500N, C0rw: 30000N.
- Brand: INA
- Inside Diameter: 40 mm
- Outside Diameter: 85 mm
- Width: 30.2 mm
- Basic dynamic load rating: 36.5 kN
- Basic static load rating: 36.5 kN
INA LFR50/5-4-2Z track rollers
INA LFR50/5-4-2Z bearing, Brand: INA, locating bearing track rollers, double row, gap seals on both sides, Dimensions: 5mm x 16mm x 8mm, Crw: 1560N, C0rw: 850N.
- Brand: INA
- Inside Diameter: 5 mm
- Outside Diameter: 16 mm
- Width: 8 mm
- Basic dynamic load rating: 1.56 kN
- Basic static load rating: 1.56 kN
INA LFR50/8-6-2Z track rollers
INA LFR50/8-6-2Z bearing, Brand: INA, locating bearing track rollers, double row, gap seals on both sides, Dimensions: 8mm x 24mm x 11mm, Crw: 4100N, C0rw: 2310N.
- Brand: INA
- Inside Diameter: 8 mm
- Outside Diameter: 24 mm
- Width: 11 mm
- Basic dynamic load rating: 4.1 kN
- Basic static load rating: 4.1 kN
INA LFR5201-10-2Z track rollers
INA LFR5201-10-2Z bearing, Brand: INA, locating bearing track rollers, double row, gap seals on both sides, Dimensions: 12mm x 35mm x 15.9mm, Crw: 8400N, C0rw: 5000N.
- Brand: INA
- Inside Diameter: 12 mm
- Outside Diameter: 35 mm
- Width: 15.9 mm
- Basic dynamic load rating: 8.4 kN
- Basic static load rating: 8.4 kN
INA LFR5301-10-2Z track rollers
INA LFR5301-10-2Z bearing, Brand: INA, locating bearing track rollers, double row, gap seals on both sides, Dimensions: 12mm x 42mm x 19mm, Crw: 13200N, C0rw: 7700N.
- Brand: INA
- Inside Diameter: 12 mm
- Outside Diameter: 42 mm
- Width: 19 mm
- Basic dynamic load rating: 13.2 kN
- Basic static load rating: 13.2 kN
INA LFR5201-12-2Z track rollers
INA LFR5201-12-2Z bearing, Brand: INA, locating bearing track rollers, double row, gap seals on both sides, Dimensions: 12mm x 35mm x 15.9mm, Crw: 8300N, C0rw: 5000N.
- Brand: INA
- Inside Diameter: 12 mm
- Outside Diameter: 35 mm
- Width: 15.9 mm
- Basic dynamic load rating: 8.3 kN
- Basic static load rating: 8.3 kN
INA LFR5206-25-2Z track rollers
INA LFR5206-25-2Z bearing, Brand: INA, locating bearing track rollers, double row, gap seals on both sides, Dimensions: 25mm x 72mm x 25.8mm, Crw: 22700N, C0rw: 16100N.
- Brand: INA
- Inside Diameter: 25 mm
- Outside Diameter: 72 mm
- Width: 25.8 mm
- Basic dynamic load rating: 22.7 kN
- Basic static load rating: 22.7 kN
INA LFR5208-40-2Z track rollers
INA LFR5208-40-2Z bearing, Brand: INA, locating bearing track rollers, double row, gap seals on both sides, Dimensions: 40mm x 98mm x 38mm, Crw: 38500N, C0rw: 29000N.
- Brand: INA
- Inside Diameter: 40 mm
- Outside Diameter: 98 mm
- Width: 38 mm
- Basic dynamic load rating: 38.5 kN
- Basic static load rating: 38.5 kN
INA LFR5308-50-2Z track rollers
INA LFR5308-50-2Z bearing, Brand: INA, locating bearing track rollers, double row, gap seals on both sides, Dimensions: 40mm x 110mm x 46mm, Crw: 54000N, C0rw: 40500N.
- Brand: INA
- Inside Diameter: 40 mm
- Outside Diameter: 110 mm
- Width: 46 mm
- Basic dynamic load rating: 54 kN
- Basic static load rating: 54 kN
INA LR604-2RSR track rollers
INA LR604-2RSR track rollers, Brand: INA, sealed on both sides, Dimensions: 4mm x 13mm x 4mm, Crw: 920N, C0rw: 350N.
- Brand: INA
- Inside Diameter: 4 mm
- Outside Diameter: 13 mm
- Width: 4 mm
- Basic dynamic load rating: 0.92 kN
- Basic static load rating: 0.92 kN
INA LR605-2RSR track rollers
INA LR605-2RSR track rollers, Brand: INA, sealed on both sides, Dimensions: 5mm x 16mm x 5mm, Crw: 1290N, C0rw: 510N.
- Brand: INA
- Inside Diameter: 5 mm
- Outside Diameter: 16 mm
- Width: 5 mm
- Basic dynamic load rating: 1.29 kN
- Basic static load rating: 1.29 kN
INA LR606-2RSR track rollers
INA LR606-2RSR track rollers, Brand: INA, sealed on both sides, Dimensions: 6mm x 19mm x 6mm, Crw: 1940N, C0rw: 790N.
- Brand: INA
- Inside Diameter: 6 mm
- Outside Diameter: 19 mm
- Width: 6 mm
- Basic dynamic load rating: 1.94 kN
- Basic static load rating: 1.94 kN

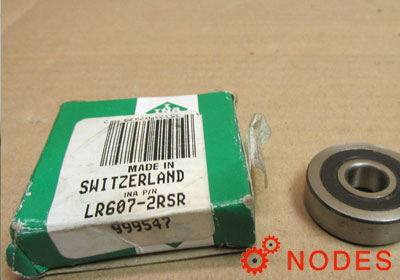

INA LR607-2RSR track rollers
INA LR607-2RSR track rollers, Brand: INA, sealed on both sides, Dimensions: 7mm x 22mm x 6mm, Crw: 2250N, C0rw: 880N.
- Brand: INA
- Inside Diameter: 7 mm
- Outside Diameter: 22 mm
- Width: 6 mm
- Basic dynamic load rating: 2.25 kN
- Basic static load rating: 2.25 kN
INA LR608-2RSR track rollers
INA LR608-2RSR track rollers, Brand: INA, sealed on both sides, Dimensions: 8mm x 24mm x 7mm, Crw: 2950N, C0rw: 1240N.
- Brand: INA
- Inside Diameter: 8 mm
- Outside Diameter: 24 mm
- Width: 7 mm
- Basic dynamic load rating: 2.95 kN
- Basic static load rating: 2.95 kN
INA LR6000-2RSR track rollers
INA LR6000-2RSR track rollers, Brand: INA, sealed on both sides, Dimensions: 10mm x 28mm x 8mm, Crw: 5000N, C0rw: 2490N.
- Brand: INA
- Inside Diameter: 10 mm
- Outside Diameter: 28 mm
- Width: 8 mm
- Basic dynamic load rating: 5 kN
- Basic static load rating: 5 kN
INA LR6001-2RSR track rollers
INA LR6001-2RSR track rollers, Brand: INA, sealed on both sides, Dimensions: 12mm x 30mm x 8mm, Crw: 5300N, C0rw: 2750N.
- Brand: INA
- Inside Diameter: 12 mm
- Outside Diameter: 30 mm
- Width: 8 mm
- Basic dynamic load rating: 5.3 kN
- Basic static load rating: 5.3 kN
INA LR50/5-2RSR track rollers
INA LR50/5-2RSR track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 5mm x 17mm x 7mm, Crw: 1690N, C0rw: 940N.
- Brand: INA
- Inside Diameter: 5 mm
- Outside Diameter: 17 mm
- Width: 7 mm
- Basic dynamic load rating: 1.69 kN
- Basic static load rating: 1.69 kN
INA LR50/6-2RSR track rollers
INA LR50/6-2RSR track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 6mm x 19mm x 9mm, Crw: 2700N, C0rw: 1370N.
- Brand: INA
- Inside Diameter: 6 mm
- Outside Diameter: 19 mm
- Width: 9 mm
- Basic dynamic load rating: 2.7 kN
- Basic static load rating: 2.7 kN

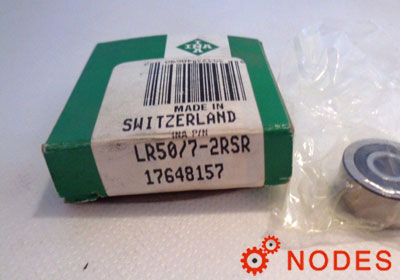

INA LR50/7-2RSR track rollers
INA LR50/7-2RSR track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 7mm x 22mm x 10mm, Crw: 3300N, C0rw: 1700N.
- Brand: INA
- Inside Diameter: 7 mm
- Outside Diameter: 22 mm
- Width: 10 mm
- Basic dynamic load rating: 3.3 kN
- Basic static load rating: 3.3 kN
INA LR50/8-2RSR track rollers
INA LR50/8-2RSR track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 8mm x 24mm x 11mm, Crw: 4300N, C0rw: 2390N.
- Brand: INA
- Inside Diameter: 8 mm
- Outside Diameter: 24 mm
- Width: 11 mm
- Basic dynamic load rating: 4.3 kN
- Basic static load rating: 4.3 kN
INA LR5000-2RS track rollers
INA LR5000-2RS track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 10mm x 28mm x 12mm, Crw: 4750N, C0rw: 2850N.
- Brand: INA
- Inside Diameter: 10 mm
- Outside Diameter: 28 mm
- Width: 12 mm
- Basic dynamic load rating: 4.75 kN
- Basic static load rating: 4.75 kN
INA LR5001-2RS track rollers
INA LR5001-2RS track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 12mm x 30mm x 12mm, Crw: 5100N, C0rw: 3100N.
- Brand: INA
- Inside Diameter: 12 mm
- Outside Diameter: 30 mm
- Width: 12 mm
- Basic dynamic load rating: 5.1 kN
- Basic static load rating: 5.1 kN
INA LR5002-2RS track rollers
INA LR5002-2RS track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 15mm x 35mm x 13mm, Crw: 6500N, C0rw: 4150N.
- Brand: INA
- Inside Diameter: 15 mm
- Outside Diameter: 35 mm
- Width: 13 mm
- Basic dynamic load rating: 6.5 kN
- Basic static load rating: 6.5 kN
INA LR5003-2RS track rollers
INA LR5003-2RS track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 17mm x 40mm x 14mm, Crw: 7800N, C0rw: 5200N.
- Brand: INA
- Inside Diameter: 17 mm
- Outside Diameter: 40 mm
- Width: 14 mm
- Basic dynamic load rating: 7.8 kN
- Basic static load rating: 7.8 kN
INA LR5004-2RS track rollers
INA LR5004-2RS track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 20mm x 47mm x 16mm, Crw: 11700N, C0rw: 7700N.
- Brand: INA
- Inside Diameter: 20 mm
- Outside Diameter: 47 mm
- Width: 16 mm
- Basic dynamic load rating: 11.7 kN
- Basic static load rating: 11.7 kN
INA LR5006-2RS track rollers
INA LR5006-2RS track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 30mm x 62mm x 19mm, Crw: 16100N, C0rw: 11900N.
- Brand: INA
- Inside Diameter: 30 mm
- Outside Diameter: 62 mm
- Width: 19 mm
- Basic dynamic load rating: 16.1 kN
- Basic static load rating: 16.1 kN
INA LR5007-2RS track rollers
INA LR5007-2RS track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 35mm x 68mm x 20mm, Crw: 17800N, C0rw: 13300N.
- Brand: INA
- Inside Diameter: 35 mm
- Outside Diameter: 68 mm
- Width: 20 mm
- Basic dynamic load rating: 17.8 kN
- Basic static load rating: 17.8 kN
INA LR5303-2HRS-TVH-XL track rollers
INA LR5303-2HRS-TVH-XL track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 17mm x 52mm x 22.2mm, Crw: 19100N, C0rw: 13400N.
- Brand: INA
- Inside Diameter: 17 mm
- Outside Diameter: 52 mm
- Width: 22.2 mm
- Basic dynamic load rating: 19.1 kN
- Basic static load rating: 19.1 kN
INA LR5304-2HRS-TVH-XL track rollers
INA LR5304-2HRS-TVH-XL track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 20mm x 62mm x 22.2mm, Crw: 22200N, C0rw: 16700N.
- Brand: INA
- Inside Diameter: 20 mm
- Outside Diameter: 62 mm
- Width: 22.2 mm
- Basic dynamic load rating: 22.2 kN
- Basic static load rating: 22.2 kN
INA LR5304-2Z-TVH-XL track rollers
INA LR5304-2Z-TVH-XL track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 20mm x 62mm x 22.2mm, Crw: 22200N, C0rw: 16700N.
- Brand: INA
- Inside Diameter: 20 mm
- Outside Diameter: 62 mm
- Width: 22.2 mm
- Basic dynamic load rating: 22.2 kN
- Basic static load rating: 22.2 kN
INA LR5305-2HRS-TVH-XL track rollers
INA LR5305-2HRS-TVH-XL track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 25mm x 72mm x 25.4mm, Crw: 28000N, C0rw: 21900N.
- Brand: INA
- Inside Diameter: 25 mm
- Outside Diameter: 72 mm
- Width: 25.4 mm
- Basic dynamic load rating: 28 kN
- Basic static load rating: 28 kN
INA LR5305-2Z-TVH-XL track rollers
INA LR5305-2Z-TVH-XL track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 25mm x 72mm x 25.4mm, Crw: 28000N, C0rw: 21900N.
- Brand: INA
- Inside Diameter: 25 mm
- Outside Diameter: 72 mm
- Width: 25.4 mm
- Basic dynamic load rating: 28 kN
- Basic static load rating: 28 kN
INA LR5306-2Z-TVH-XL track rollers
INA LR5306-2Z-TVH-XL track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 30mm x 80mm x 30.2mm, Crw: 36000N, C0rw: 28500N.
- Brand: INA
- Inside Diameter: 30 mm
- Outside Diameter: 80 mm
- Width: 30.2 mm
- Basic dynamic load rating: 36 kN
- Basic static load rating: 36 kN
INA LR5307-2HRS-TVH-XL track rollers
INA LR5307-2HRS-TVH-XL track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 35mm x 90mm x 34.9mm, Crw: 45500N, C0rw: 36000N.
- Brand: INA
- Inside Diameter: 35 mm
- Outside Diameter: 90 mm
- Width: 34.9 mm
- Basic dynamic load rating: 45.5 kN
- Basic static load rating: 45.5 kN
INA LR5307-2Z-TVH-XL track rollers
INA LR5307-2Z-TVH-XL track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 35mm x 90mm x 34.9mm, Crw: 45500N, C0rw: 36000N.
- Brand: INA
- Inside Diameter: 35 mm
- Outside Diameter: 90 mm
- Width: 34.9 mm
- Basic dynamic load rating: 45.5 kN
- Basic static load rating: 45.5 kN
INA LR5308-2HRS-TVH-XL track rollers
INA LR5308-2HRS-TVH-XL track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 40mm x 100mm x 36.5mm, Crw: 54000N, C0rw: 44500N.
- Brand: INA
- Inside Diameter: 40 mm
- Outside Diameter: 100 mm
- Width: 36.5 mm
- Basic dynamic load rating: 54 kN
- Basic static load rating: 54 kN
INA LR5308-2Z-TVH-XL track rollers
INA LR5308-2Z-TVH-XL track rollers, Brand: INA, double row, sealed on both sides, Dimensions: 40mm x 100mm x 36.5mm, Crw: 54000N, C0rw: 44500N.
- Brand: INA
- Inside Diameter: 40 mm
- Outside Diameter: 100 mm
- Width: 36.5 mm
- Basic dynamic load rating: 54 kN
- Basic static load rating: 54 kN
