INA NATR12-PP Bearing

INA NATR12-PP Yoke type track rollers

Also known as : NATR12-PP, NART12UUR

  • Inside Diameter: 12 mm
  • Outside Diameter: 32 mm
  • Width: 15 mm
  • Basic dynamic load rating: 7 kN
  • Basic static load rating: 9 kN

Inquire Now

INA NATR12-PP Bearing

INA NATR12-PP Bearing details

d 12 mm
D 32 mm
B 15 mm
C 14 mm
d2 25 mm
rmin 0,6 mm
m 66 g  Mass
Cr w 7000 N  Effective dynamic load rating as track roller (radial)
C0r w 9000 N  Effective static load rating as track roller (radial)
Cur w 1290 N  Fatigue limit load
nD G 4500 1/min  Speed (with continuous operation and grease lubrication)
    Bearing with plastic axial plain washers and optimised INA profile.
Permissible operating temperature: -30°C to + 100°C (continuous operation).

As INA bearing distributor, Nodes bearings have INA NATR12-PP Yoke type track rollers in stock, with axial guidance, axial plain washers on both sides.

related articles

Related numbers

INA NA2201-2RSR bearing
12mm x 32mm x 14mm
INA NATR12 bearing
12mm x 32mm x 15mm
INA NATV12 bearing
12mm x 32mm x 15mm
INA NATV12-PP bearing
12mm x 32mm x 15mm
INA RNA22/8-2RSR bearing
12mm x 24mm x 11.8mm
INA RSTO8-TV bearing
12mm x 24mm x 9.8mm

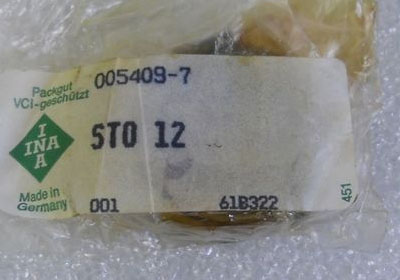

INA STO12 bearing
