NSK 6010VV Bearing

NSK 6010VV Deep groove ball bearings

Also known as : 6010VV, 6010-2RZ

  • Inside Diameter: 50 mm
  • Outside Diameter: 80 mm
  • Width: 16 mm
  • Basic dynamic load rating: 21.8 kN
  • Basic static load rating: 16.6 kN

Inquire Now

NSK 6010VV Bearing

NSK 6010VV Bearing details

model 6010VV
d 50 mm
D 80 mm
B 16 mm
rmin. 1.0 mm
Cr 21800 N
2220 kgf
C0r 16600 N
1700 kgf
Limiting speeds 8500 min-1 (Grease)
f0 15.6 (Factor)
da min 55 mm
da max 58.5 mm
Da 75 mm
ra 1 mm
Mass 0.261 kg (approx.)

NSK 6010VV ball bearings, deep groove ball bearing, Single-Row, VV: With Two Non-Contact Sealed.

related articles

Related numbers

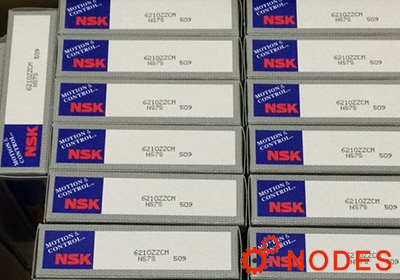

NSK 6210ZZ bearing
50mm x 90mm x 20mm
NSK 6310ZZ bearing
50mm x 110mm x 27mm

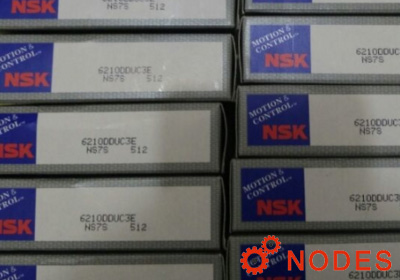

NSK 6210DDU bearing
