NSK 6211DDU Bearing

NSK 6211DDU Deep groove ball bearings

Also known as : 6211DDU, 6211LLU, 6211-2RS1, 6211-2RSR

  • Inside Diameter: 55 mm
  • Outside Diameter: 100 mm
  • Width: 21 mm
  • Basic dynamic load rating: 43.5 kN
  • Basic static load rating: 29.3 kN

Inquire Now

NSK 6211DDU Bearing

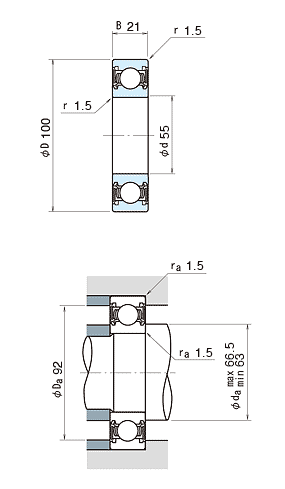

NSK 6211DDU Bearing details

model 6211DDU
d 55 mm
D 100 mm
B 21 mm
rmin. 1.5 mm
Cr 43500 N
4450 kgf
C0r 29300 N
2980 kgf
Limiting speeds 4300 min-1 (Grease)
f0 14.3 (Factor)
da min 63 mm
da max 66.5 mm
Da 92 mm
ra 1.5 mm
Mass 0.619 kg (approx.)

NSK 6211DDU ball bearings, deep groove ball bearing, Single-Row, DDU: With Two Contact Sealed.
