NSK 6212ZZ Bearing

NSK 6212ZZ Deep groove ball bearings

Also known as : 6212ZZ, 6212-2Z

  • Inside Diameter: 60 mm
  • Outside Diameter: 110 mm
  • Width: 22 mm
  • Basic dynamic load rating: 52.5 kN
  • Basic static load rating: 36 kN

Inquire Now


NSK 6212ZZ Bearing

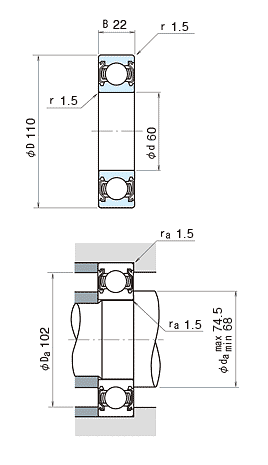

NSK 6212ZZ Bearing details

model 6212ZZ
d 60 mm
D 110 mm
B 22 mm
rmin. 1.5 mm
Cr 52500 N
5350 kgf
C0r 36000 N
3700 kgf
Limiting speeds 5600 min-1 (Grease)
f0 14.3 (Factor)
da min 68 mm
da max 74.5 mm
Da 102 mm
ra 1.5 mm
Mass 0.783 kg (approx.)

NSK 6212ZZ ball bearings, deep groove ball bearing, Single-Row, ZZ: With Two Shielded.

NSK 6212ZZ bearing cross reference

NSK 6912ZZ bearing
60mm x 85mm x 13mm
SKF 6212-2Z bearing
60mm x 110mm x 22mm
SKF 6212-2Z/C3 bearing
60mm x 110mm x 22mm
SKF 6212-2RS1 bearing
60mm x 110mm x 22mm
NSK 6812 bearing
60mm x 78mm x 10mm
NSK 6912 bearing
60mm x 85mm x 13mm
NSK 16012 bearing
60mm x 95mm x 11mm
NSK 6012 bearing
60mm x 95mm x 18mm
NSK 6212 bearing
60mm x 110mm x 22mm
NSK 6312 bearing
60mm x 130mm x 31mm
NSK 6812ZZ bearing
60mm x 78mm x 10mm
NSK 6012ZZ bearing
60mm x 95mm x 18mm
