NSK 6218 Bearing

NSK 6218 Deep groove ball bearings

Also known as : 6218

  • Inside Diameter: 90 mm
  • Outside Diameter: 160 mm
  • Width: 30 mm
  • Basic dynamic load rating: 96 kN
  • Basic static load rating: 71.5 kN

Inquire Now

NSK 6218 Bearing

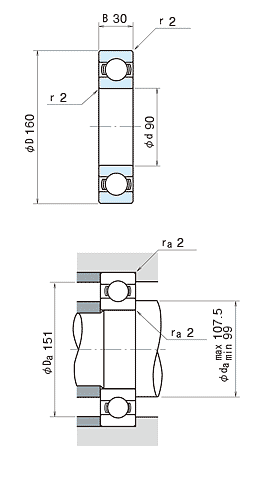

NSK 6218 Bearing details

model 6218
d 90 mm
D 160 mm
B 30 mm
rmin. 2.0 mm
Cr 96000 N
9800 kgf
C0r 71500 N
7300 kgf
Limiting speeds 4000 min-1 (Grease)
Limiting speeds 4800 min-1 (Oil)
f0 14.5 (Factor)
da min 99.0 mm
da max 107.5 mm
Da 151.0 mm
ra 2.0 mm
Mass 2.180 kg (approx.)

NSK 6218 ball bearings, deep groove ball bearing, Single-Row, Open type.
