NSK 6226 Bearing

NSK 6226 Deep groove ball bearings

Also known as : 6226

  • Inside Diameter: 130 mm
  • Outside Diameter: 230 mm
  • Width: 40 mm
  • Basic dynamic load rating: 167 kN
  • Basic static load rating: 146 kN

Inquire Now


NSK 6226 Bearing

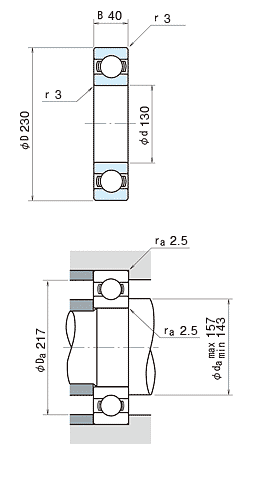

NSK 6226 Bearing details

model 6226
d 130 mm
D 230 mm
B 40 mm
rmin. 3.0 mm
Cr 167000 N
17000 kgf
C0r 146000 N
14900 kgf
Limiting speeds 2400 min-1 (Grease)
Limiting speeds 3000 min-1 (Oil)
f0 14.5 (Factor)
da min 143.0 mm
da max 157.0 mm
Da 217.0 mm
ra 2.5 mm
Mass 5.960 kg (approx.)

NSK 6226 ball bearings, deep groove ball bearing, Single-Row, Open type.
