NSK 628VV Bearing

NSK 628VV bearing | 8x24x8mm

Also known as : 628VV

• Inside Diameter: 8 mm
• Outside Diameter: 24 mm
• Width: 8 mm
• Basic dynamic load rating: 3.35 kN
• Basic static load rating: 1.43 kN

Inquire Now

NSK 628VV Bearing

NSK number	628VV

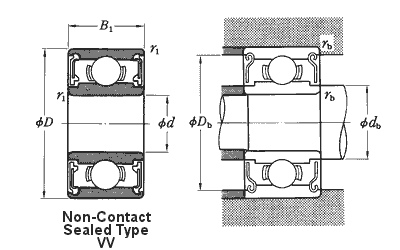

Type	Miniature ball bearings, Metric design, With Two Non-Contact Sealed
d	8 mm
D	24 mm
B1	8 mm
r1 min.	0.30 mm
Cr	3350 N
C0r	1430 N
Limiting speeds	28000 min-1 (Grease)
db	12.0 mm
Db	20.5 mm
rb	0.30 mm
Mass	17.40 g (approx.)

Nodes bearings have NSK 628VV bearings in stock, Metric design, With Two Non-Contact Sealed.
