NSK 6310ZZ Bearing

NSK 6310ZZ Deep groove ball bearings

Also known as : 6310ZZ, 6310-2Z

  • Inside Diameter: 50 mm
  • Outside Diameter: 110 mm
  • Width: 27 mm
  • Basic dynamic load rating: 62 kN
  • Basic static load rating: 38.5 kN

Inquire Now


NSK 6310ZZ Bearing

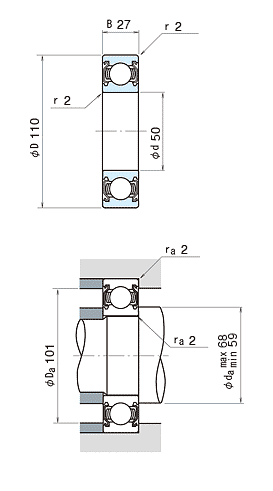

NSK 6310ZZ Bearing details

model 6310ZZ
d 50 mm
D 110 mm
B 27 mm
rmin. 2.0 mm
Cr 62000 N
6300 kgf
C0r 38500 N
3900 kgf
Limiting speeds 6000 min-1 (Grease)
f0 13.2 (Factor)
da min 59 mm
da max 68 mm
Da 101 mm
ra 2 mm
Mass 1.060 kg (approx.)

NSK 6310ZZ ball bearings, deep groove ball bearing, Single-Row, ZZ: With Two Shielded.
