NSK 6311ZZC3 Bearing

NSK 6311ZZC3 Deep groove ball bearings

Also known as : 6311ZZC3, 6311-2ZC3

  • Inside Diameter: 55 mm
  • Outside Diameter: 120 mm
  • Width: 29 mm
  • Basic dynamic load rating: 71.5 kN
  • Basic static load rating: 44.5 kN

Inquire Now

NSK 6311ZZC3 Bearing

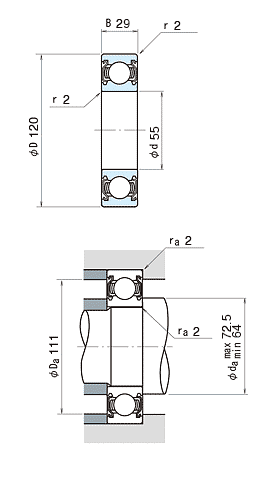

NSK 6311ZZC3 Bearing details

model 6311ZZC3
d 55 mm
D 120 mm
B 29 mm
rmin. 2.0 mm
Cr 71500 N
7300 kgf
C0r 44500 N
4550 kgf
Limiting speeds 5600 min-1 (Grease)
f0 13.1 (Factor)
da min 64 mm
da max 72.5 mm
Da 111 mm
ra 2 mm
Mass 1.370 kg (approx.)

NSK 6311ZZC3 ball bearings, deep groove ball bearing, Single-Row, ZZ: With Two Shielded.
