NSK 6319 Bearing

NSK 6319 Deep groove ball bearings

Also known as : 6319

  • Inside Diameter: 95 mm
  • Outside Diameter: 200 mm
  • Width: 45 mm
  • Basic dynamic load rating: 153 kN
  • Basic static load rating: 119 kN

Inquire Now

NSK 6319 Bearing

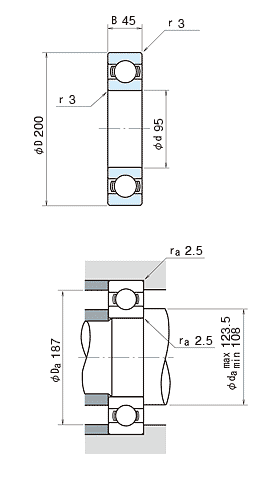

NSK 6319 Bearing details

model 6319
d 95 mm
D 200 mm
B 45 mm
rmin. 3.0 mm
Cr 153000 N
15600 kgf
C0r 119000 N
12100 kgf
Limiting speeds 3000 min-1 (Grease)
Limiting speeds 3600 min-1 (Oil)
f0 13.3 (Factor)
da min 108.0 mm
da max 123.5 mm
Da 187.0 mm
ra 2.5 mm
Mass 5.760 kg (approx.)

NSK 6319 ball bearings, deep groove ball bearing, Single-Row, Open type.
