NSK 6802ZZ Bearing

NSK 6802ZZ Deep groove ball bearings

Also known as : 6802ZZ, 61802-2Z

  • Inside Diameter: 15 mm
  • Outside Diameter: 24 mm
  • Width: 5 mm
  • Basic dynamic load rating: 2.07 kN
  • Basic static load rating: 1.26 kN

Inquire Now

NSK 6802ZZ Bearing

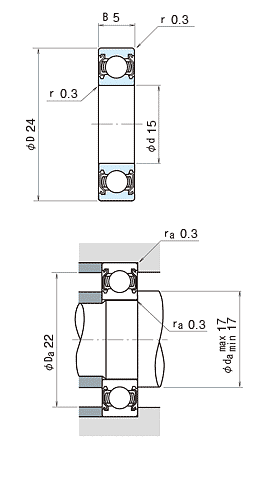

NSK 6802ZZ Bearing details

model 6802ZZ
d 15 mm
D 24 mm
B 5 mm
rmin. 0.3 mm
Cr 2070 N
212 kgf
C0r 1260 N
128 kgf
Limiting speeds 28000 min-1 (Grease)
f0 15.8 (Factor)
da min 17 mm
da max 17 mm
Da 22 mm
ra 0.3 mm
Mass 0.007 kg (approx.)

NSK 6802ZZ ball bearings, deep groove ball bearing, Single-Row, ZZ: With Two Shielded.
