NSK 6824 Bearing

NSK 6824 Deep groove ball bearings

Also known as : 6824, 61824

  • Inside Diameter: 120 mm
  • Outside Diameter: 150 mm
  • Width: 16 mm
  • Basic dynamic load rating: 28.9 kN
  • Basic static load rating: 35.5 kN

Inquire Now


NSK 6824 Bearing

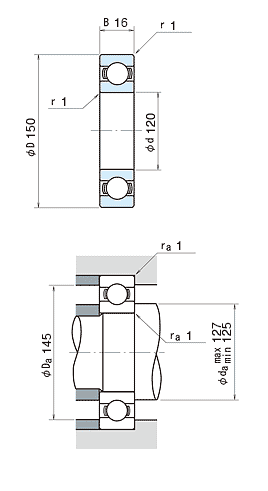

NSK 6824 Bearing details

model 6824
d 120 mm
D 150 mm
B 16 mm
rmin. 1.0 mm
Cr 28900 N
2950 kgf
C0r 35500 N
3650 kgf
Limiting speeds 4000 min-1 (Grease)
Limiting speeds 4800 min-1 (Oil)
f0 17.3 (Factor)
da min 125.0 mm
da max 127.0 mm
Da 145.0 mm
ra 1.0 mm
Mass 0.537 kg (approx.)

NSK 6824 ball bearings, deep groove ball bearing, Single-Row, Open type .

NSK 6824 bearing cross reference

NSK 6824ZZ bearing
120mm x 150mm x 16mm
NSK 6324ZZS bearing
120mm x 260mm x 55mm
NSK 6924 bearing
120mm x 165mm x 22mm
NSK 16024 bearing
120mm x 180mm x 19mm
NSK 6024 bearing
120mm x 180mm x 28mm
NSK 6224 bearing
120mm x 215mm x 40mm
NSK 6324 bearing
120mm x 260mm x 55mm
NSK 6924ZZ bearing
120mm x 165mm x 22mm
NSK 6024ZZ bearing
120mm x 180mm x 28mm
NSK 6224ZZ bearing
120mm x 215mm x 40mm
NSK 6824DD bearing
120mm x 150mm x 16mm
NSK 6024DDU bearing
120mm x 180mm x 28mm
