NSK cylindrical roller bearings

Nodes bearing supplies NSK cylindrical roller bearings in many different types designated as NU, NJ, NUP, N, NF, and NN in stock. In cylindrical roller bearings, the cylindrical rollers are in linear contact with the raceways. They have a high radial load capacity and are suitable for high speeds.

The outer and inner rings of all NSK cylindrical roller bearing types are separable.

Tapered roller bearings comprise solid inner and outer rings with tapered raceways and tapered rollers in a window cage.

Some cylindrical roller bearings have no ribs on either the inner or outer ring, so the rings can move axially relative to each other. These can be used as free-end bearings. Cylindrical roller bearings, in which either the inner or outer rings has two ribs and the other ring has one, are capable of taking some axial load in one direction Double-row cylindrical roller bearings have high radial rigidity and are used primarily for precision machine tools.

Semiconductors

Pressed steel or machined brass cages are generally used, but sometimes molded polyamide cages are also used.

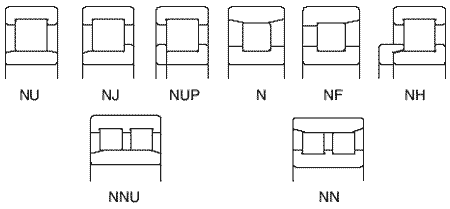

Depending on the existence of ribs on their rings, Cylindrical Roller Bearings are classified into the following types:
Semiconductors

Types NU, N, NNU, and NN are suitable as free-end bearings. Types NJ and NF can sustain limited axial loads in one direction. Types NH and NUP can be used as fixed-end bearings.

NH-type cylindrical roller bearings consist of the NJ-type cylindrical roller bearings and HJ-type L-shaped thrust collars.

The inner ring loose rib of an NUP-type cylindrical roller bearing should be mounted so that the marked side is on the outside.


related articles

Related numbers

NSK NU2205 bearing
25mm x 52mm x 18mm
NSK NU305EW bearing
25mm x 62mm x 17mm
NSK NU2206ET bearing
30mm x 62mm x 20mm
NSK NU306EW bearing
30mm x 72mm x 19mm
NSK NU307EW bearing
35mm x 80mm x 21mm
NSK NU1008 bearing
40mm x 68mm x 15mm
NSK NU308EW bearing
40mm x 90mm x 23mm
NSK NU310EW bearing
50mm x 110mm x 27mm
