NSK 22212EAE4C3 Bearing

NSK 22212EAE4C3 Spherical roller bearings

Also known as : 22212EAE4C3, 22212CC/W33C3

  • Inside Diameter: 60 mm
  • Outside Diameter: 110 mm
  • Width: 28 mm
  • Basic dynamic load rating: 178 kN
  • Basic static load rating: 174 kN

Inquire Now

NSK 22212EAE4C3 Bearing

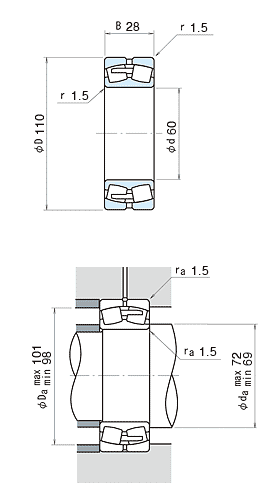

NSK 22212EAE4C3 Bearing details

model 22212EAE4C3
d 60 mm
D 110 mm
B 28.0 mm
rmin. 1.5 mm
Cr 178000 N
18100 kgf
C0r 174000 N
17800 kgf
Limiting speeds 4800 min-1 (Grease)
Limiting speeds 6000 min-1 (Oil)
da min 69 mm
da max 72.000 mm
Da max 101 mm
Da min 98 mm
ra 1.5 mm
Constant 0.23
Y2 4.4 Axial Load Factors
Y3 3 Axial Load Factors
Y0 2.9 Axial Load Factors
Mass 1.10 kg (approx.)

NSK 22212EAE4C3 roller bearings with Cylindrical Bore, spherical roller bearing, double-Row.
