NSK 22236CDE4 Spherical roller bearings | 180x320x86.0mm
Also known as : 22236CDE4
- Inside Diameter: 180 mm
- Outside Diameter: 320 mm
- Width: 86 mm
- Basic dynamic load rating: 1020 kN
- Basic static load rating: 1540 kN
NSK 22236CDE4 Bearing
NSK 22236CDE4 Bearing details
| Bearing number | 22236CDE4 |
|---|---|
| Type | Spherical roller bearings |
| Brand | NSK |
| d | 180 mm |
| D | 320 mm |
| B | 86.0 mm |
| rmin. | 4.0 mm |
| Cr |
1020000 N 104000 kgf |
| C0r |
1540000 N 157000 kgf |
| Limiting speeds | 1100 min-1 (Grease) |
| Limiting speeds | 1300 min-1 (Oil) |
| da min | 198 mm |
| da max | 212.000 mm |
| Da max | 302 mm |
| Da min | 278 mm |
| ra | 3.0 mm |
| Constant | 0.26 |
| Y2 | 3.9 Axial Load Factors |
| Y3 | 2.6 Axial Load Factors |
| Y0 | 2.6 Axial Load Factors |
| Mass | 30.20 kg (approx.) |
NSK 22236CDE4 roller bearings with Cylindrical Bore, spherical roller bearing, double-Row.
NSK 22236CDE4 bearing cross reference
FAG 22236-E1-XL bearing
180mm x 320mm x 86mm

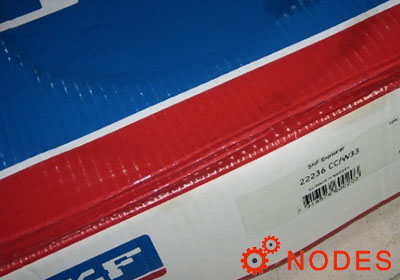

SKF 22236CC/W33 bearing
