NSK 22316EAE4C3 Bearing

NSK 22316EAE4C3 Spherical roller bearings

Also known as : 22316EAE4C3, 22316CC/W33C3

  • Inside Diameter: 80 mm
  • Outside Diameter: 170 mm
  • Width: 58 mm
  • Basic dynamic load rating: 540 kN
  • Basic static load rating: 565 kN

Inquire Now


NSK 22316EAE4C3 Bearing

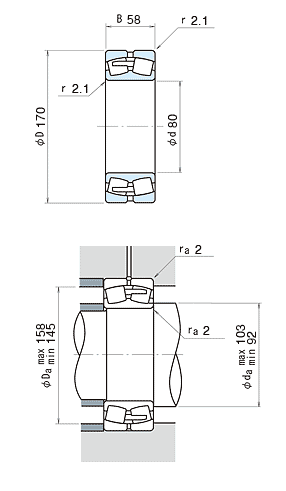

NSK 22316EAE4C3 Bearing details

model 22316EAE4C3
d 80 mm
D 170 mm
B 58.0 mm
rmin. 2.1 mm
Cr 540000 N
55000 kgf
C0r 565000 N
58000 kgf
Limiting speeds 2600 min-1 (Grease)
Limiting speeds 3400 min-1 (Oil)
da min 92 mm
da max 103.000 mm
Da max 158 mm
Da min 145 mm
ra 2.0 mm
Constant 0.33
Y2 3 Axial Load Factors
Y3 2 Axial Load Factors
Y0 2 Axial Load Factors
Mass 6.23 kg (approx.)

NSK 22316EAE4C3 roller bearings with Cylindrical Bore, spherical roller bearing, double-Row.
