NSK 23156CAME4 Bearing

NSK 23156CAME4 Spherical roller bearings

Also known as : 23156CAME4, 23156CC/W33

• Inside Diameter: 280 mm
• Outside Diameter: 460 mm
• Width: 146 mm
• Basic dynamic load rating: 2230 kN
• Basic static load rating: 4000 kN

Inquire Now

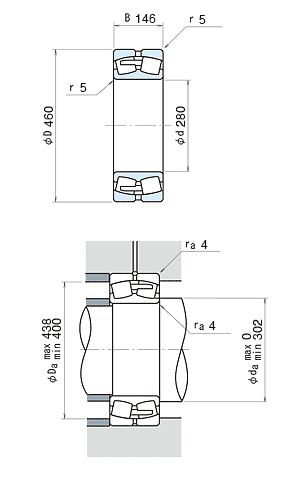

NSK 23156CAME4 Bearing

model	23156CAME4
d	280 mm
D	460 mm
B	146.0 mm
rmin.	5.0 mm
Cr	2230000 N 228000 kgf
C0r	4000000 N 410000 kgf
Limiting speeds	560 min-1 (Grease)
Limiting speeds	750 min-1 (Oil)
da min	302 mm
da max	0.000 mm
Da max	438 mm
Da min	400 mm
ra	4.0 mm
Constant	0.3
Y2	3.3 Axial Load Factors
Y3	2.2 Axial Load Factors
Y0	2.2 Axial Load Factors
Mass	94.30 kg (approx.)

NSK 23156CAME4 roller bearings with Cylindrical Bore, spherical roller bearing, double-Row.
