NSK 23240CAME4 Bearing

NSK 23240CAME4 Spherical roller bearings

Also known as : 23240CAME4, 23240CC/W33

  • Inside Diameter: 200 mm
  • Outside Diameter: 360 mm
  • Width: 128 mm
  • Basic dynamic load rating: 1660 kN
  • Basic static load rating: 2750 kN

Inquire Now

NSK 23240CAME4 Bearing

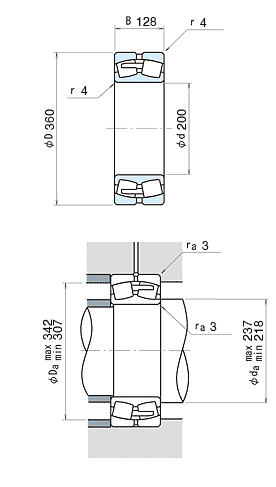

NSK 23240CAME4 Bearing details

model 23240CAME4
d 200 mm
D 360 mm
B 128.0 mm
rmin. 4.0 mm
Cr 1660000 N
169000 kgf
C0r 2750000 N
281000 kgf
Limiting speeds 750 min-1 (Grease)
Limiting speeds 1000 min-1 (Oil)
da min 218 mm
da max 237.000 mm
Da max 342 mm
Da min 307 mm
ra 3.0 mm
Constant 0.34
Y2 2.9 Axial Load Factors
Y3 2 Axial Load Factors
Y0 1.9 Axial Load Factors
Mass 57.10 kg (approx.)

NSK 23240CAME4 roller bearings with Cylindrical Bore, spherical roller bearing, double-Row.

Related numbers

FAG 23240-BE-XL bearing
200mm x 360mm x 128mm
SKF 23240CC/W33 bearing
200mm x 360mm x 128mm
SKF 23240CC/W33 bearing
200mm x 360mm x 128mm
