NSK HR30213J Tapered roller bearings
Also known as : HR30213J, 30213
- Inside Diameter: 65 mm
- Outside Diameter: 120 mm
- Width: 24.75 mm
- Basic dynamic load rating: 122 kN
- Basic static load rating: 151 kN
NSK HR30213J Bearing

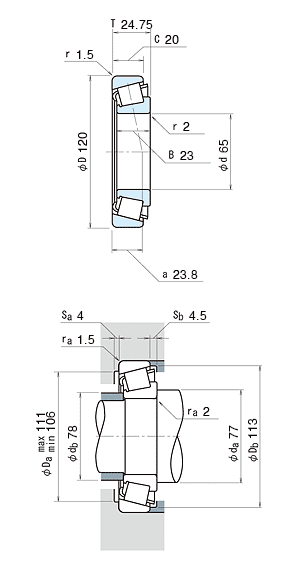

NSK HR30213J Bearing details
| model | HR30213J |
|---|---|
| d | 65 mm |
| D | 120 mm |
| T | 24.75 mm |
| B | 23 mm |
| D | 20 mm |
| Cone rmin. | 2 mm |
| Cup rmin. | 1.5 mm |
| Cr | 122000 N |
| C0r | 151000 N |
| Limiting speeds | 3000 min-1 (Grease) |
| Limiting speeds | 4000 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
3EB |
| e | 0.41 (constant) |
| y1 | 1.5 (Axial Load Factors) |
| y0 | 0.81 (Axial Load Factors) |
| Mass | 1.18 kg (approx.) |
NSK HR30213J roller bearings, tapered roller bearing, Single-Row Metric Design.
NSK HR30213J bearing cross reference
NSK HR32213J bearing
65mm x 120mm x 32.75mm
FAG 30213-A bearing
65mm x 120mm x 24.75mm
FAG 30213-XL bearing
65mm x 120mm x 24.75mm
NTN 4T-30213 bearing
65mm x 120mm x 23.0mm
NSK HR32913J bearing
65mm x 90mm x 17mm
NSK HR32013XJ bearing
65mm x 100mm x 23mm
NSK HR33013J bearing
65mm x 100mm x 27mm
NSK HR33113J bearing
65mm x 110mm x 34mm
NSK HR33213J bearing
65mm x 120mm x 41mm
NSK HR30313DJ bearing
65mm x 140mm x 36mm
NSK HR30313J bearing
65mm x 140mm x 36mm
