NSK HR30214J Tapered Roller Bearings
Also known as : HR30214J, 30214
- Inside Diameter: 70 mm
- Outside Diameter: 125 mm
- Width: 26.25 mm
- Basic dynamic load rating: 132 kN
- Basic static load rating: 163 kN
NSK HR30214J Bearing

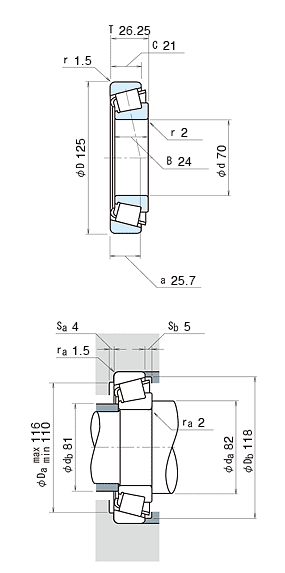

NSK HR30214J Bearing details
| model | HR30214J |
|---|---|
| d | 70 mm |
| D | 125 mm |
| T | 26.25 mm |
| B | 24 mm |
| C | 21 mm |
| Cone rmin. | 2 mm |
| Cup rmin. | 1.5 mm |
| Cr | 132000 N |
| C0r | 163000 N |
| Limiting speeds | 2800 min-1 (Grease) |
| Limiting speeds | 4000 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
3EB |
| e | 0.42 (constant) |
| y1 | 1.4 (Axial Load Factors) |
| y0 | 0.79 (Axial Load Factors) |
| Mass | 1.3 kg (approx.) |
NSK HR30214J roller bearings, tapered roller bearing, Single-Row Metric Design.
NSK HR30214J bearing cross reference
NSK HR32914J bearing
70mm x 100mm x 20mm
NSK HR32014XJ bearing
70mm x 110mm x 25mm
NSK HR33014J bearing
70mm x 110mm x 31mm
NSK HR33114J bearing
70mm x 120mm x 37mm
NSK HR32214J bearing
70mm x 125mm x 33.25mm
NSK HR33214J bearing
70mm x 125mm x 41mm
NSK T7FC070 bearing
70mm x 140mm x 39mm
NSK HR30314DJ bearing
70mm x 150mm x 38mm
NSK HR30314J bearing
70mm x 150mm x 38mm
NSK HR31314J bearing
70mm x 150mm x 38mm
NSK HR32314CJ bearing
70mm x 150mm x 54mm
