NSK HR32208J Bearing

NSK HR32208J Tapered roller bearings

Also known as : HR32208J, 32208

  • Inside Diameter: 40 mm
  • Outside Diameter: 80 mm
  • Width: 24.75 mm
  • Basic dynamic load rating: 77 kN
  • Basic static load rating: 90.5 kN

Inquire Now

NSK HR32208J Bearing

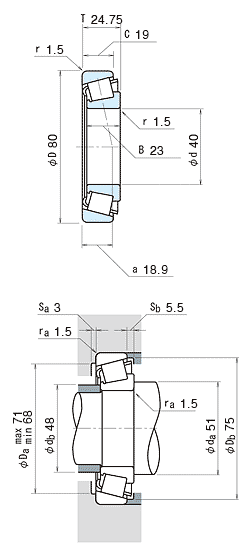

NSK HR32208J Bearing details

model HR32208J
d 40 mm
D 80 mm
T 24.75 mm
B 23 mm
C 19 mm
Cone rmin. 1.5 mm
Cup rmin. 1.5 mm
Cr 77000 N
7900 kgf
C0r 90500 N
9200 kgf
Limiting speeds
4800 min-1 (Grease)
Limiting speeds
6300 min-1 (Oil)
ISO355
Dimensions Series approx.
3DC
e 0.38 (constant)
y1 1.6 (Axial Load Factors)
y0 0.88 (Axial Load Factors)
Mass 0.548 kg (approx.)

NSK HR32208J roller bearings, tapered roller bearing, Single-Row Metric Design.
