NSK HR32217J Bearing

NSK HR32217J Tapered roller bearings

Also known as : HR32217J, 32217

• Inside Diameter: 85 mm
• Outside Diameter: 150 mm
• Width: 38.5 mm
• Basic dynamic load rating: 210 kN
• Basic static load rating: 277 kN

Inquire Now

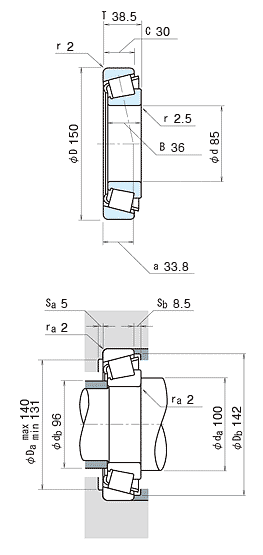

NSK HR32217J Bearing

model	HR32217J
d	85 mm
D	150 mm
T	38.5 mm
B	36 mm
C	30 mm
Cone rmin.	2.5 mm
Cup rmin.	2 mm
Cr	210000 N 21400 kgf
C0r	277000 N 28200 kgf
Limiting speeds	2200 min-1 (Grease)
Limiting speeds	3200 min-1 (Oil)
ISO355 Dimensions Series approx.	3EC
e	0.42 (constant)
y1	1.4 (Axial Load Factors)
y0	0.79 (Axial Load Factors)
Mass	2.64 kg (approx.)

NSK HR32217J roller bearings, tapered roller bearing, Single-Row Metric Design.
