NSK HR33111J Bearing

NSK HR33111J Tapered roller bearings

Also known as : HR33111J, 33111

  • Inside Diameter: 55 mm
  • Outside Diameter: 95 mm
  • Width: 30 mm
  • Basic dynamic load rating: 112 kN
  • Basic static load rating: 158 kN

Inquire Now


NSK HR33111J Bearing

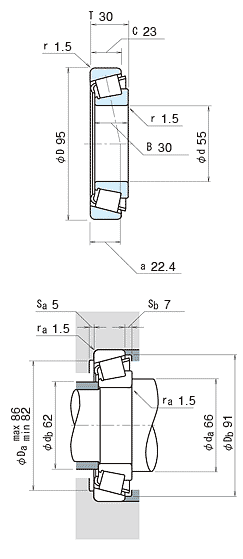

NSK HR33111J Bearing details

model HR33111J
d 55 mm
D 95 mm
T 30 mm
B 30 mm
C 23 mm
Cone rmin. 1.5 mm
Cup rmin. 1.5 mm
Cr 112000 N
11500 kgf
C0r 158000 N
16100 kgf
Limiting speeds
3800 min-1 (Grease)
Limiting speeds
5000 min-1 (Oil)
ISO355
Dimensions Series approx.
3CE
e 0.37 (constant)
y1 1.6 (Axial Load Factors)
y0 0.88 (Axial Load Factors)
Mass 0.877 kg (approx.)

NSK HR33111J roller bearings, tapered roller bearing, Single-Row Metric Design.

NSK HR33111J bearing cross reference

NSK HR32211J bearing
55mm x 100mm x 26.75mm
FAG 33111 bearing
55mm x 95mm x 30mm
FAG 33111-N11CA bearing
55mm x 95mm x 60mm
SKF 33111 bearing
55mm x 95mm x 30mm
NTN 4T-33111 bearing
55mm x 95mm x 30.0mm
NSK HR32911J bearing
55mm x 80mm x 17mm
NSK HR32011XJ bearing
55mm x 90mm x 23mm
NSK HR33011J bearing
55mm x 90mm x 27mm
NSK HR30211J bearing
55mm x 100mm x 22.75mm
NSK HR33211J bearing
55mm x 100mm x 35mm
NSK T7FC055 bearing
55mm x 115mm x 34mm
NSK HR30311DJ bearing
55mm x 120mm x 31.5mm
