NTN Contact type LLU bearings

NTN 6205LLU bearings | 25x52x15mm

NTN 6205LLU bearing, Deep groove ball bearings, Dimensions:25mm x 52mm x 15mm, Dynamic Load Rating: 14.00kN, Static Load Rating: 7.85kN

Inquire Now

Brand: NTN
Inside Diameter: 25 mm
Outside Diameter: 52 mm
Width: 15 mm
Basic dynamic load rating: 14 kN
Basic static load rating: 14 kN

NTN 6204LLU bearings | 20x47x14mm

NTN 6204LLU bearing, Deep groove ball bearings, Dimensions:20mm x 47mm x 14mm, Dynamic Load Rating: 12.80kN, Static Load Rating: 6.65kN

Inquire Now

Brand: NTN
Inside Diameter: 20 mm
Outside Diameter: 47 mm
Width: 14 mm
Basic dynamic load rating: 12.8 kN
Basic static load rating: 12.8 kN

NTN 6202LLU bearings | 15x35x11mm

NTN 6202LLU bearing, Deep groove ball bearings, Dimensions:15mm x 35mm x 11mm, Dynamic Load Rating: 7.75kN, Static Load Rating: 3.60kN

Inquire Now

Brand: NTN
Inside Diameter: 15 mm
Outside Diameter: 35 mm
Width: 11 mm
Basic dynamic load rating: 7.75 kN
Basic static load rating: 7.75 kN

NTN 6203LLU bearings | 17x40x12mm

NTN 6203LLU bearing, Deep groove ball bearings, Dimensions:17mm x 40mm x 12mm, Dynamic Load Rating: 9.60kN, Static Load Rating: 4.60kN

Inquire Now

Brand: NTN
Inside Diameter: 17 mm
Outside Diameter: 40 mm
Width: 12 mm
Basic dynamic load rating: 9.6 kN
Basic static load rating: 9.6 kN

NTN 6200LLU bearings | 10x30x9mm

NTN 6200LLU bearing, Deep groove ball bearings, Dimensions:10mm x 30mm x 9mm, Dynamic Load Rating: 5.10kN, Static Load Rating: 2.39kN

Inquire Now

Brand: NTN
Inside Diameter: 10 mm
Outside Diameter: 30 mm
Width: 9 mm
Basic dynamic load rating: 5.1 kN
Basic static load rating: 5.1 kN

NTN 6900LLU bearings | 10x22x6mm

NTN 6900LLU bearing, Deep groove ball bearings, Dimensions:10mm x 22mm x 6mm, Dynamic Load Rating: 2.70kN, Static Load Rating: 1.27kN

Inquire Now

Brand: NTN
Inside Diameter: 10 mm
Outside Diameter: 22 mm
Width: 6 mm
Basic dynamic load rating: 2.7 kN
Basic static load rating: 2.7 kN

NTN 6000LLU bearings | 10x26x8mm

NTN 6000LLU bearing, Deep groove ball bearings, Dimensions:10mm x 26mm x 8mm, Dynamic Load Rating: 4.55kN, Static Load Rating: 1.96kN

Inquire Now

Brand: NTN
Inside Diameter: 10 mm
Outside Diameter: 26 mm
Width: 8 mm
Basic dynamic load rating: 4.55 kN
Basic static load rating: 4.55 kN

NTN 6801LLU bearings | 12x21x5mm

NTN 6801LLU bearing, Deep groove ball bearings, Dimensions:12mm x 21mm x 5mm, Dynamic Load Rating: 1.92kN, Static Load Rating: 1.04kN

Inquire Now

Brand: NTN
Inside Diameter: 12 mm
Outside Diameter: 21 mm
Width: 5 mm
Basic dynamic load rating: 1.92 kN
Basic static load rating: 1.92 kN

NTN 6201LLU bearings | 12x32x10mm

NTN 6201LLU bearing, Deep groove ball bearings, Dimensions:12mm x 32mm x 10mm, Dynamic Load Rating: 6.10kN, Static Load Rating: 2.75kN

Inquire Now

Brand: NTN
Inside Diameter: 12 mm
Outside Diameter: 32 mm
Width: 10 mm
Basic dynamic load rating: 6.1 kN
Basic static load rating: 6.1 kN

NTN 6002LLU bearings | 15x32x9mm

NTN 6002LLU bearing, Deep groove ball bearings, Dimensions:15mm x 32mm x 9mm, Dynamic Load Rating: 5.60kN, Static Load Rating: 2.83kN

Inquire Now

Brand: NTN
Inside Diameter: 15 mm
Outside Diameter: 32 mm
Width: 9 mm
Basic dynamic load rating: 5.6 kN
Basic static load rating: 5.6 kN

NTN 6202LLUC3 bearings | 15x35x11mm

NTN 6202LLUC3 bearing, Deep groove ball bearings, Dimensions:15mm x 35mm x 11mm, Dynamic Load Rating: 7.75kN, Static Load Rating: 3.60kN

Inquire Now

Brand: NTN
Inside Diameter: 15 mm
Outside Diameter: 35 mm
Width: 11 mm
Basic dynamic load rating: 7.75 kN
Basic static load rating: 7.75 kN

NTN 6003LLU bearings | 17x35x10mm

NTN 6003LLU bearing, Deep groove ball bearings, Dimensions:17mm x 35mm x 10mm, Dynamic Load Rating: 6.80kN, Static Load Rating: 3.35kN

Inquire Now

Brand: NTN
Inside Diameter: 17 mm
Outside Diameter: 35 mm
Width: 10 mm
Basic dynamic load rating: 6.8 kN
Basic static load rating: 6.8 kN

NTN 6904LLU bearings | 20x37x9mm

NTN 6904LLU bearing, Deep groove ball bearings, Dimensions:20mm x 37mm x 9mm, Dynamic Load Rating: 6.40kN, Static Load Rating: 3.70kN

Inquire Now

Brand: NTN
Inside Diameter: 20 mm
Outside Diameter: 37 mm
Width: 9 mm
Basic dynamic load rating: 6.4 kN
Basic static load rating: 6.4 kN

NTN 6303LLU bearings | 17x47x14mm

NTN 6303LLU bearing, Deep groove ball bearings, Dimensions:17mm x 47mm x 14mm, Dynamic Load Rating: 13.50kN, Static Load Rating: 6.55kN

Inquire Now

Brand: NTN
Inside Diameter: 17 mm
Outside Diameter: 47 mm
Width: 14 mm
Basic dynamic load rating: 13.5 kN
Basic static load rating: 13.5 kN

NTN 6004LLU bearings | 20x42x12mm

NTN 6004LLU bearing, Deep groove ball bearings, Dimensions:20mm x 42mm x 12mm, Dynamic Load Rating: 9.40kN, Static Load Rating: 5.05kN

Inquire Now

Brand: NTN
Inside Diameter: 20 mm
Outside Diameter: 42 mm
Width: 12 mm
Basic dynamic load rating: 9.4 kN
Basic static load rating: 9.4 kN

NTN 6304LLU bearings | 20x52x15mm

NTN 6304LLU bearing, Deep groove ball bearings, Dimensions:20mm x 52mm x 15mm, Dynamic Load Rating: 15.90kN, Static Load Rating: 7.90kN

Inquire Now

Brand: NTN
Inside Diameter: 20 mm
Outside Diameter: 52 mm
Width: 15 mm
Basic dynamic load rating: 15.9 kN
Basic static load rating: 15.9 kN

NTN 6204LLUC3 bearings | 20x47x14mm

NTN 6204LLU bearing, Deep groove ball bearings, Dimensions:20mm x 47mm x 14mm, Dynamic Load Rating: 12.80kN, Static Load Rating: 6.65kN

Inquire Now

Brand: NTN
Inside Diameter: 20 mm
Outside Diameter: 47 mm
Width: 14 mm
Basic dynamic load rating: 12.8 kN
Basic static load rating: 12.8 kN

NTN 6005LLU bearings | 25x47x12mm

NTN 6005LLU bearing, Deep groove ball bearings, Dimensions:25mm x 47mm x 12mm, Dynamic Load Rating: 10.10kN, Static Load Rating: 5.85kN

Inquire Now

Brand: NTN
Inside Diameter: 25 mm
Outside Diameter: 47 mm
Width: 12 mm
Basic dynamic load rating: 10.1 kN
Basic static load rating: 10.1 kN

NTN 6305LLU bearings | 25x62x17mm

NTN 6305LLU bearing, Deep groove ball bearings, Dimensions:25mm x 62mm x 17mm, Dynamic Load Rating: 21.20kN, Static Load Rating: 10.90kN

Inquire Now

Brand: NTN
Inside Diameter: 25 mm
Outside Diameter: 62 mm
Width: 17 mm
Basic dynamic load rating: 21.2 kN
Basic static load rating: 21.2 kN

NTN 6006LLU bearings | 30x55x13mm

NTN 6006LLU bearing, Deep groove ball bearings, Dimensions:30mm x 55mm x 13mm, Dynamic Load Rating: 13.20kN, Static Load Rating: 8.30kN

Inquire Now

Brand: NTN
Inside Diameter: 30 mm
Outside Diameter: 55 mm
Width: 13 mm
Basic dynamic load rating: 13.2 kN
Basic static load rating: 13.2 kN

NTN 6306LLU bearings | 30x72x19mm

NTN 6306LLU bearing, Deep groove ball bearings, Dimensions:30mm x 72mm x 19mm, Dynamic Load Rating: 26.70kN, Static Load Rating: 15.00kN

Inquire Now

Brand: NTN
Inside Diameter: 30 mm
Outside Diameter: 72 mm
Width: 19 mm
Basic dynamic load rating: 26.7 kN
Basic static load rating: 26.7 kN

NTN 6306LLUC3 bearings | 30x72x19mm

NTN 6306LLUC3 bearing, Deep groove ball bearings, Dimensions:30mm x 72mm x 19mm, Dynamic Load Rating: 26.70kN, Static Load Rating: 15.00kN

Inquire Now

Brand: NTN
Inside Diameter: 30 mm
Outside Diameter: 72 mm
Width: 19 mm
Basic dynamic load rating: 26.7 kN
Basic static load rating: 26.7 kN

NTN 6206LLU bearings | 30x62x16mm

NTN 6206LLU bearing, Deep groove ball bearings, Dimensions:30mm x 62mm x 16mm, Dynamic Load Rating: 19.50kN, Static Load Rating: 11.30kN

Inquire Now

Brand: NTN
Inside Diameter: 30 mm
Outside Diameter: 62 mm
Width: 16 mm
Basic dynamic load rating: 19.5 kN
Basic static load rating: 19.5 kN

NTN 6008LLUC3 bearings | 40x68x15mm

NTN 6008LLUC3 bearing, Deep groove ball bearings, Dimensions:40mm x 68mm x 15mm, Dynamic Load Rating: 16.80kN, Static Load Rating: 11.50kN

Inquire Now

Brand: NTN
Inside Diameter: 40 mm
Outside Diameter: 68 mm
Width: 15 mm
Basic dynamic load rating: 16.8 kN
Basic static load rating: 16.8 kN

NTN 6008LLU bearings | 40x68x15mm

NTN 6008LLU bearing, Deep groove ball bearings, Dimensions:40mm x 68mm x 15mm, Dynamic Load Rating: 16.80kN, Static Load Rating: 11.50kN

Inquire Now

Brand: NTN
Inside Diameter: 40 mm
Outside Diameter: 68 mm
Width: 15 mm
Basic dynamic load rating: 16.8 kN
Basic static load rating: 16.8 kN

NTN 6009LLUC3 bearings | 45x75x16mm

NTN 6009LLUC3 bearing, Deep groove ball bearings, Dimensions:45mm x 75mm x 16mm, Dynamic Load Rating: 21.00kN, Static Load Rating: 15.10kN

Inquire Now

Brand: NTN
Inside Diameter: 45 mm
Outside Diameter: 75 mm
Width: 16 mm
Basic dynamic load rating: 21 kN
Basic static load rating: 21 kN

NTN 6309LLU bearings | 45x100x25mm

NTN 6309LLU bearing, Deep groove ball bearings, Dimensions:45mm x 100mm x 25mm, Dynamic Load Rating: 53.00kN, Static Load Rating: 32.00kN

Inquire Now

Brand: NTN
Inside Diameter: 45 mm
Outside Diameter: 100 mm
Width: 25 mm
Basic dynamic load rating: 53 kN
Basic static load rating: 53 kN

NTN 6210LLU bearings | 50x90x20mm

NTN 6210LLU bearing, Deep groove ball bearings, Dimensions:50mm x 90mm x 20mm, Dynamic Load Rating: 35.00kN, Static Load Rating: 23.20kN

Inquire Now

Brand: NTN
Inside Diameter: 50 mm
Outside Diameter: 90 mm
Width: 20 mm
Basic dynamic load rating: 35 kN
Basic static load rating: 35 kN

NTN 6811LLU bearings | 55x72x9mm

NTN 6811LLU bearing, Deep groove ball bearings, Dimensions:55mm x 72mm x 9mm, Dynamic Load Rating: 8.80kN, Static Load Rating: 8.10kN

Inquire Now

Brand: NTN
Inside Diameter: 55 mm
Outside Diameter: 72 mm
Width: 9 mm
Basic dynamic load rating: 8.8 kN
Basic static load rating: 8.8 kN

NTN 6311LLU bearings | 55x120x29mm

NTN 6311LLU bearing, Deep groove ball bearings, Dimensions:55mm x 120mm x 29mm, Dynamic Load Rating: 71.50kN, Static Load Rating: 45.00kN

Inquire Now

Brand: NTN
Inside Diameter: 55 mm
Outside Diameter: 120 mm
Width: 29 mm
Basic dynamic load rating: 71.5 kN
Basic static load rating: 71.5 kN

NTN 6011LLU bearings | 55x90x18mm

NTN 6011LLU bearing, Deep groove ball bearings, Dimensions:55mm x 90mm x 18mm, Dynamic Load Rating: 28.30kN, Static Load Rating: 21.20kN

Inquire Now

Brand: NTN
Inside Diameter: 55 mm
Outside Diameter: 90 mm
Width: 18 mm
Basic dynamic load rating: 28.3 kN
Basic static load rating: 28.3 kN

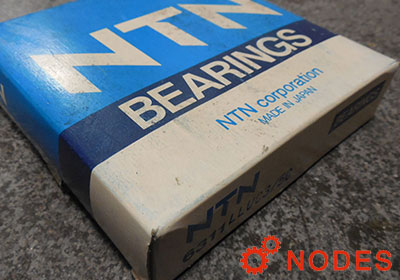

NTN 6311LLUC3 bearings | 55x120x29mm

NTN 6311LLUC3 bearing, Deep groove ball bearings, Dimensions:55mm x 120mm x 29mm, Dynamic Load Rating: 71.50kN, Static Load Rating: 45.00kN

Inquire Now

Brand: NTN
Inside Diameter: 55 mm
Outside Diameter: 120 mm
Width: 29 mm
Basic dynamic load rating: 71.5 kN
Basic static load rating: 71.5 kN

NTN 6013LLU bearings | 65x100x18mm

NTN 6013LLU bearing, Deep groove ball bearings, Dimensions:65mm x 100mm x 18mm, Dynamic Load Rating: 30.50kN, Static Load Rating: 25.20kN

Inquire Now

Brand: NTN
Inside Diameter: 65 mm
Outside Diameter: 100 mm
Width: 18 mm
Basic dynamic load rating: 30.5 kN
Basic static load rating: 30.5 kN

NTN 6812LLU bearings | 60x78x10mm

NTN 6812LLU bearing, Deep groove ball bearings, Dimensions:60mm x 78mm x 10mm, Dynamic Load Rating: 11.50kN, Static Load Rating: 10.60kN

Inquire Now

Brand: NTN
Inside Diameter: 60 mm
Outside Diameter: 78 mm
Width: 10 mm
Basic dynamic load rating: 11.5 kN
Basic static load rating: 11.5 kN

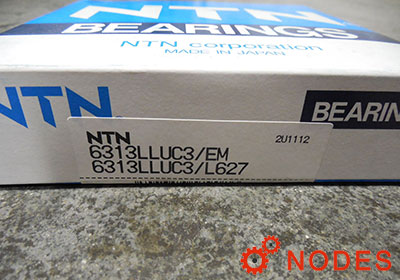

NTN 6313LLUC3 bearings | 65x140x33mm

NTN 6313LLU bearing, Deep groove ball bearings, Dimensions:65mm x 140mm x 33mm, Dynamic Load Rating: 92.50kN, Static Load Rating: 60.00kN

Inquire Now

Brand: NTN
Inside Diameter: 65 mm
Outside Diameter: 140 mm
Width: 33 mm
Basic dynamic load rating: 92.5 kN
Basic static load rating: 92.5 kN

NTN 6915LLU bearings | 75x105x16mm

NTN 6915LLU bearing, Deep groove ball bearings, Dimensions:75mm x 105mm x 16mm, Dynamic Load Rating: 24.40kN, Static Load Rating: 22.60kN

Inquire Now

Brand: NTN
Inside Diameter: 75 mm
Outside Diameter: 105 mm
Width: 16 mm
Basic dynamic load rating: 24.4 kN
Basic static load rating: 24.4 kN

NTN 6815LLU bearings | 75x95x10mm

NTN 6815LLU bearing, Deep groove ball bearings, Dimensions:75mm x 95mm x 10mm, Dynamic Load Rating: 12.50kN, Static Load Rating: 12.90kN

Inquire Now

Brand: NTN
Inside Diameter: 75 mm
Outside Diameter: 95 mm
Width: 10 mm
Basic dynamic load rating: 12.5 kN
Basic static load rating: 12.5 kN

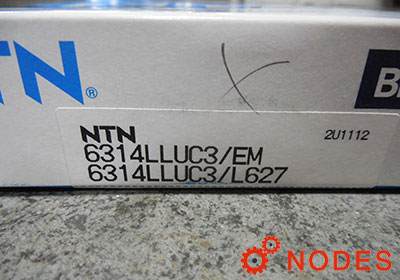

NTN 6314LLU bearings | 70x150x35mm

NTN 6314LLU bearing, Deep groove ball bearings, Dimensions:70mm x 150mm x 35mm, Dynamic Load Rating: 104.00kN, Static Load Rating: 68.00kN

Inquire Now

Brand: NTN
Inside Diameter: 70 mm
Outside Diameter: 150 mm
Width: 35 mm
Basic dynamic load rating: 104 kN
Basic static load rating: 104 kN

NTN deep groove ball bearings
