NTN EC-6302LLB Bearing

NTN EC-6302LLB bearings | 15x42x13mm

Also known as : EC-6302LLB

  • Inside Diameter: 15 mm
  • Outside Diameter: 42 mm
  • Width: 13 mm
  • Basic dynamic load rating: 11.4 kN
  • Basic static load rating: 5.45 kN

Inquire Now

NTN EC-6302LLB Bearing

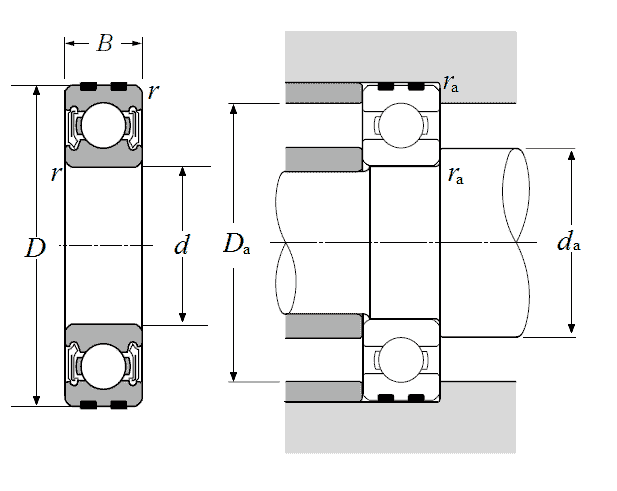

NTN EC-6302LLB Bearing details

Boundary dimensions (mm) Basic load ratings
(kN)
Basic load ratings
(kgf)
Limiting speed
(min-1)
Mass
(kg)
<approx.>
Inner dia. (d) Outer dia. (D) Width (B) Chamfer (rs_min) Dynamic (Cr) Static (Cor) Dynamic (Cr) Static (Cor) Grease Oil
15  42  13  11.4  5.45  1170  555  17000  21000  0.079
Abutment and fillet dimensions
(mm)
da
min
da
max
Da
min
Da
max
Dx
<approx.>
Cy
max
Cz
min
ras
max
rnas
max
20  23    37

Nodes have NTN EC-6302LLB bearings in stock. The boundary dimensions of expansion compensating deep groove ball bearings are the same as for standard bearings, but formed high polymer material with a high expansion rate is provided in the grooves on the outer circumference of the outer ring.
