Nodes have a wide range of spherical roller bearings in stock. They are:
Brand: SKF, FAG, NSK, NTN, TIMKEN.
Series: 213, 222, 223, 230, 231, 232, 238, 239, 240, 241, 248, 249.
Spherical roller bearings are double row, self-retaining units comprising solid outer rings with a concave raceway, solid inner rings and barrel rollers with cages. The inner rings have cylindrical or tapered bores.
Sealed spherical roller bearings provide a high degree of reliability of the most demanding application and protect the bearing from the ingress of contaminants during handing, mounting, and operation.
FAG 23024-E1A-XL-M Spherical roller bearings
FAG 23024-E1A-XL-M bearing, spherical roller bearing, Dimensions: 120mm x 180mm x 46mm, Cr: 430000N, C0r: 580000N, Limiting Speeds:3950 1/min.
- Brand: FAG
- Inside Diameter: 120 mm
- Outside Diameter: 180 mm
- Width: 46 mm
- Basic dynamic load rating: 430 kN
- Basic static load rating: 430 kN
FAG 22320-E1-XL Spherical roller bearings
FAG 22320-E1-XL bearing, spherical roller bearing, Dimensions: 100mm x 215mm x 73mm, Cr: 810000N, C0r: 920000N, Limiting Speeds:3300 1/min.
- Brand: FAG
- Inside Diameter: 100 mm
- Outside Diameter: 215 mm
- Width: 73 mm
- Basic dynamic load rating: 810 kN
- Basic static load rating: 810 kN

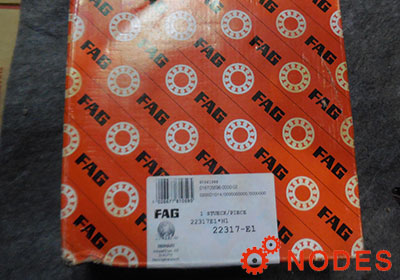

FAG 22317-E1-XL Spherical roller bearings
FAG 22317-E1-XL bearing, spherical roller bearing, Dimensions: 85mm x 180mm x 60mm, Cr: 540000N, C0r: 560000N, Limiting Speeds:4100 1/min.
- Brand: FAG
- Inside Diameter: 85 mm
- Outside Diameter: 180 mm
- Width: 60 mm
- Basic dynamic load rating: 540 kN
- Basic static load rating: 540 kN
FAG 22316-E1-XL Spherical roller bearings
FAG 22316-E1-XL bearing, spherical roller bearing, Dimensions: 80mm x 170mm x 58mm, Cr: 495000N, C0r: 510000N, Limiting Speeds:4250 1/min.
- Brand: FAG
- Inside Diameter: 80 mm
- Outside Diameter: 170 mm
- Width: 58 mm
- Basic dynamic load rating: 495 kN
- Basic static load rating: 495 kN
FAG 22314-E1-XL Spherical roller bearings
FAG 22314-E1-XL bearing, spherical roller bearing, Dimensions: 70mm x 150mm x 51mm, Cr: 390000N, C0r: 390000N, Limiting Speeds:4800 1/min.
- Brand: FAG
- Inside Diameter: 70 mm
- Outside Diameter: 150 mm
- Width: 51 mm
- Basic dynamic load rating: 390 kN
- Basic static load rating: 390 kN
FAG 22310-E1-XL Spherical roller bearings
FAG 22310-E1-XL bearing, spherical roller bearing, Dimensions: 50mm x 110mm x 40mm, Cr: 229000N, C0r: 223000N, Limiting Speeds:6300 1/min.
- Brand: FAG
- Inside Diameter: 50 mm
- Outside Diameter: 110 mm
- Width: 40 mm
- Basic dynamic load rating: 229 kN
- Basic static load rating: 229 kN
FAG 22224-E1-XL Spherical roller bearings
FAG 22224-E1-XL bearing, spherical roller bearing, Dimensions: 120mm x 215mm x 58mm, Cr: 640000N, C0r: 740000N, Limiting Speeds:3650 1/min.
- Brand: FAG
- Inside Diameter: 120 mm
- Outside Diameter: 215 mm
- Width: 58 mm
- Basic dynamic load rating: 640 kN
- Basic static load rating: 640 kN
FAG 22212-E1-XL Spherical roller bearings
FAG 22212-E1-XL bearing, spherical roller bearing, Dimensions: 60mm x 110mm x 28mm, Cr: 160000N, C0r: 155000N, Limiting Speeds:8100 1/min.
- Brand: FAG
- Inside Diameter: 60 mm
- Outside Diameter: 110 mm
- Width: 28 mm
- Basic dynamic load rating: 160 kN
- Basic static load rating: 160 kN
FAG 22209-E1-XL Spherical roller bearings
FAG 22209-E1-XL bearing, spherical roller bearing, Dimensions: 45mm x 85mm x 23mm, Cr: 104000N, C0r: 99000N, Limiting Speeds:10100 1/min.
- Brand: FAG
- Inside Diameter: 45 mm
- Outside Diameter: 85 mm
- Width: 23 mm
- Basic dynamic load rating: 104 kN
- Basic static load rating: 104 kN
FAG 22207-E1-XL Spherical roller bearings
FAG 22207-E1-XL bearing, spherical roller bearing, Dimensions: 35mm x 72mm x 23mm, Cr: 89000N, C0r: 81000N, Limiting Speeds:10700 1/min.
- Brand: FAG
- Inside Diameter: 35 mm
- Outside Diameter: 72 mm
- Width: 23 mm
- Basic dynamic load rating: 89 kN
- Basic static load rating: 89 kN
SKF 21306CC/C3 spherical roller bearings
SKF 21306CC/C3 bearing, Spherical roller bearings, Dimensions: 30mm x 72mm x 19mm, Limiting Speeds:10000 r/min.
- Brand: SKF
- Inside Diameter: 30 mm
- Outside Diameter: 72 mm
- Width: 19 mm
- Basic dynamic load rating: 65.7 kN
- Basic static load rating: 65.7 kN
SKF 22320EJA/VA405 bearings for vibratory applications
SKF 22320EJA/VA405 bearing, Spherical roller bearings for vibratory applications, Dimensions: 100mm x 215mm x 73mm, Limiting Speeds:3000 r/min.
- Brand: SKF
- Inside Diameter: 100 mm
- Outside Diameter: 215 mm
- Width: 73 mm
- Basic dynamic load rating: 847 kN
- Basic static load rating: 847 kN
SKF 22330CCJA/W33VA405 bearings for vibratory applications
SKF 22330CCJA/W33VA405 bearing, Spherical roller bearings for vibratory applications, Dimensions: 150mm x 320mm x 108mm, Limiting Speeds:2000 r/min.
- Brand: SKF
- Inside Diameter: 150 mm
- Outside Diameter: 320 mm
- Width: 108 mm
- Basic dynamic load rating: 1539 kN
- Basic static load rating: 1539 kN
SKF 22328CCJA/W33VA405 bearings for vibratory applications
SKF 22328CCJA/W33VA405 bearing, Spherical roller bearings for vibratory applications, Dimensions: 140mm x 300mm x 102mm, Limiting Speeds:2200 r/min.
- Brand: SKF
- Inside Diameter: 140 mm
- Outside Diameter: 300 mm
- Width: 102 mm
- Basic dynamic load rating: 1357 kN
- Basic static load rating: 1357 kN
SKF 23188CA/W33 spherical roller bearings
SKF 23188CA/W33 bearing, Spherical roller bearings, Dimensions: 440mm x 720mm x 226mm, Limiting Speeds:850 r/min.
- Brand: SKF
- Inside Diameter: 440 mm
- Outside Diameter: 720 mm
- Width: 226 mm
- Basic dynamic load rating: 6215 kN
- Basic static load rating: 6215 kN
SKF 240/500ECA/W33 spherical roller bearings
SKF 240/500ECA/W33 bearing, Spherical roller bearings, Dimensions: 500mm x 720mm x 218mm, Limiting Speeds:700 r/min.
- Brand: SKF
- Inside Diameter: 500 mm
- Outside Diameter: 720 mm
- Width: 218 mm
- Basic dynamic load rating: 5777 kN
- Basic static load rating: 5777 kN
SKF 239/500CA/W33 spherical roller bearings
SKF 239/500CA/W33 bearing, Spherical roller bearings, Dimensions: 500mm x 670mm x 128mm, Limiting Speeds:950 r/min.
- Brand: SKF
- Inside Diameter: 500 mm
- Outside Diameter: 670 mm
- Width: 128 mm
- Basic dynamic load rating: 2967 kN
- Basic static load rating: 2967 kN
SKF 23220CCK/C3W33 spherical roller bearings
SKF 23220CCK/C3W33 bearing, Tapered bore, taper 1:12, Spherical roller bearings, C3 internal clearance, Dimensions: 100mm x 180mm x 60.3mm, Limiting Speeds:3400 r/min.
- Brand: SKF
- Inside Diameter: 100 mm
- Outside Diameter: 180 mm
- Width: 60.3 mm
- Basic dynamic load rating: 498 kN
- Basic static load rating: 498 kN
SKF 23160CCK/W33 spherical roller bearings
SKF 23160CCK/W33 bearing, Tapered bore, taper 1:12, Spherical roller bearings, Dimensions: 300mm x 500mm x 160mm, Limiting Speeds:1200 r/min.
- Brand: SKF
- Inside Diameter: 300 mm
- Outside Diameter: 500 mm
- Width: 160 mm
- Basic dynamic load rating: 3368 kN
- Basic static load rating: 3368 kN
SKF 23138CCK/W33 spherical roller bearings
SKF 23138CCK/W33 bearing, Tapered bore, taper 1:12, Spherical roller bearings, Dimensions: 190mm x 320mm x 104mm, Limiting Speeds:2000 r/min.
- Brand: SKF
- Inside Diameter: 190 mm
- Outside Diameter: 320 mm
- Width: 104 mm
- Basic dynamic load rating: 1456 kN
- Basic static load rating: 1456 kN
SKF 23136CCK/C3W33 spherical roller bearings
SKF 23136CCK/C3W33 bearing, Tapered bore, taper 1:12, Spherical roller bearings, C3 internal clearance, Dimensions: 180mm x 300mm x 96mm, Limiting Speeds:2200 r/min.
- Brand: SKF
- Inside Diameter: 180 mm
- Outside Diameter: 300 mm
- Width: 96 mm
- Basic dynamic load rating: 1263 kN
- Basic static load rating: 1263 kN
SKF 23076CCK/W33 spherical roller bearings
SKF 23076CCK/W33 bearing, Tapered bore, taper 1:12, Spherical roller bearings, Dimensions: 380mm x 560mm x 135mm, Limiting Speeds:1200 r/min.
- Brand: SKF
- Inside Diameter: 380 mm
- Outside Diameter: 560 mm
- Width: 135 mm
- Basic dynamic load rating: 2984 kN
- Basic static load rating: 2984 kN
SKF 23034CCK/W33 spherical roller bearings
SKF 23034CCK/W33 bearing, Tapered bore, taper 1:12, Spherical roller bearings, Dimensions: 170mm x 260mm x 67mm, Limiting Speeds:2800 r/min.
- Brand: SKF
- Inside Diameter: 170 mm
- Outside Diameter: 260 mm
- Width: 67 mm
- Basic dynamic load rating: 745 kN
- Basic static load rating: 745 kN
SKF 22232CCK/C3W33 spherical roller bearings
SKF 22232CCK/C3W33 bearing, Tapered bore, taper 1:12, Spherical roller bearings, C3 internal clearance, Dimensions: 160mm x 290mm x 80mm, Limiting Speeds:2800 r/min.
- Brand: SKF
- Inside Diameter: 160 mm
- Outside Diameter: 290 mm
- Width: 80 mm
- Basic dynamic load rating: 1043 kN
- Basic static load rating: 1043 kN
SKF 22356CCK/W33 spherical roller bearings
SKF 22356CCK/W33 bearing, Tapered bore, taper 1:12, Spherical roller bearings, Dimensions: 280mm x 580mm x 175mm, Limiting Speeds:1100 r/min.
- Brand: SKF
- Inside Diameter: 280 mm
- Outside Diameter: 580 mm
- Width: 175 mm
- Basic dynamic load rating: 4158 kN
- Basic static load rating: 4158 kN
SKF 22326CC/C3W33 spherical roller bearings
SKF 22326CC/C3W33 bearing, Spherical roller bearings, C3 internal clearance, Dimensions: 130mm x 280mm x 93mm, Limiting Speeds:2400 r/min.
- Brand: SKF
- Inside Diameter: 130 mm
- Outside Diameter: 280 mm
- Width: 93 mm
- Basic dynamic load rating: 1176 kN
- Basic static load rating: 1176 kN
SKF 22326CC/W33 spherical roller bearings
SKF 22326CC/W33 bearing, Spherical roller bearings, Dimensions: 130mm x 280mm x 93mm, Limiting Speeds:2400 r/min.
- Brand: SKF
- Inside Diameter: 130 mm
- Outside Diameter: 280 mm
- Width: 93 mm
- Basic dynamic load rating: 1176 kN
- Basic static load rating: 1176 kN
SKF 24144CC/C3W33 spherical roller bearings
SKF 24144CC/C3W33 bearing, Spherical roller bearings, C3 internal clearance, Dimensions: 220mm x 370mm x 150mm, Limiting Speeds:1200 r/min.
- Brand: SKF
- Inside Diameter: 220 mm
- Outside Diameter: 370 mm
- Width: 150 mm
- Basic dynamic load rating: 2197 kN
- Basic static load rating: 2197 kN
SKF 24128CC/W33 spherical roller bearings
SKF 24128CC/W33 bearing, Spherical roller bearings, Dimensions: 140mm x 225mm x 85mm, Limiting Speeds:2200 r/min.
- Brand: SKF
- Inside Diameter: 140 mm
- Outside Diameter: 225 mm
- Width: 85 mm
- Basic dynamic load rating: 796 kN
- Basic static load rating: 796 kN
SKF 24124CC/C3W33 spherical roller bearings
SKF 24124CC/C3W33 bearing, Spherical roller bearings, C3 internal clearance, Dimensions: 120mm x 200mm x 80mm, Limiting Speeds:2600 r/min.
- Brand: SKF
- Inside Diameter: 120 mm
- Outside Diameter: 200 mm
- Width: 80 mm
- Basic dynamic load rating: 679 kN
- Basic static load rating: 679 kN
SKF 24122CC/C3W33 spherical roller bearings
SKF 24122CC/C3W33 bearing, Spherical roller bearings, C3 internal clearance, Dimensions: 110mm x 180mm x 69mm, Limiting Speeds:3000 r/min.
- Brand: SKF
- Inside Diameter: 110 mm
- Outside Diameter: 180 mm
- Width: 69 mm
- Basic dynamic load rating: 539 kN
- Basic static load rating: 539 kN
SKF 24064CC/W33 spherical roller bearings
SKF 24064CC/W33 bearing, Spherical roller bearings, Dimensions: 320mm x 480mm x 160mm, Limiting Speeds:1200 r/min.
- Brand: SKF
- Inside Diameter: 320 mm
- Outside Diameter: 480 mm
- Width: 160 mm
- Basic dynamic load rating: 2969 kN
- Basic static load rating: 2969 kN
SKF 24030CC/C3W33 spherical roller bearings
SKF 24030CC/C3W33 bearing, Spherical roller bearings, C3 internal clearance, Dimensions: 150mm x 225mm x 75mm, Limiting Speeds:2600 r/min.
- Brand: SKF
- Inside Diameter: 150 mm
- Outside Diameter: 225 mm
- Width: 75 mm
- Basic dynamic load rating: 680 kN
- Basic static load rating: 680 kN
SKF 24024CC/W33 spherical roller bearings
SKF 24024CC/W33 bearing, Spherical roller bearings, Dimensions: 120mm x 180mm x 60mm, Limiting Speeds:3400 r/min.
- Brand: SKF
- Inside Diameter: 120 mm
- Outside Diameter: 180 mm
- Width: 60 mm
- Basic dynamic load rating: 456 kN
- Basic static load rating: 456 kN
SKF 24022CC/C3W33 spherical roller bearings
SKF 24022CC/C3W33 bearing, Spherical roller bearings, C3 internal clearance, Dimensions: 110mm x 170mm x 60mm, Limiting Speeds:3600 r/min.
- Brand: SKF
- Inside Diameter: 110 mm
- Outside Diameter: 170 mm
- Width: 60 mm
- Basic dynamic load rating: 437 kN
- Basic static load rating: 437 kN
SKF 23980CC/W33 spherical roller bearings
SKF 23980CC/W33 bearing, Spherical roller bearings, Dimensions: 400mm x 540mm x 106mm, Limiting Speeds:1200 r/min.
- Brand: SKF
- Inside Diameter: 400 mm
- Outside Diameter: 540 mm
- Width: 106 mm
- Basic dynamic load rating: 2038 kN
- Basic static load rating: 2038 kN
SKF 23248CC/C3W33 spherical roller bearings
SKF 23248CC/C3W33 bearing, Spherical roller bearings, C3 internal clearance, Dimensions: 240mm x 440mm x 160mm, Limiting Speeds:1300 r/min.
- Brand: SKF
- Inside Diameter: 240 mm
- Outside Diameter: 440 mm
- Width: 160 mm
- Basic dynamic load rating: 3042 kN
- Basic static load rating: 3042 kN
SKF 23240CC/C3W33 spherical roller bearings
SKF 23240CC/C3W33 bearing, Spherical roller bearings, C3 internal clearance, Dimensions: 200mm x 360mm x 128mm, Limiting Speeds:1700 r/min.
- Brand: SKF
- Inside Diameter: 200 mm
- Outside Diameter: 360 mm
- Width: 128 mm
- Basic dynamic load rating: 1947 kN
- Basic static load rating: 1947 kN
