SKF GE20C Bearing

SKF GE20C spherical plain bearings | 20x35x16mm

Also known as : GE20C, GE20-UK

  • Inside Diameter: 20 mm
  • Outside Diameter: 35 mm
  • Width: 16 mm
  • Basic dynamic load rating: 31.5 kN
  • Basic static load rating: 78 kN

Inquire Now


SKF GE20C Bearing

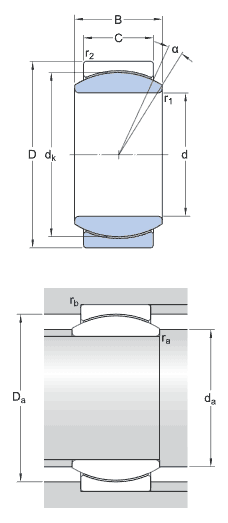

SKF GE20C Bearing details

number GE20C
Type maintenance-free radial spherical plain bearings
d 20 mm
D 35 mm
B 16 mm
C 12 mm
α 9 °
dk 29 mm
r1 min. 0.3 mm
r2 min. 0.3 mm
da min. 21.8 mm
da max. 24.2 mm
Da min. 27.6 mm
Da max. 33.4 mm
ra max. 0.3 mm
rb max. 0.3 mm
Calculation data
Basic dynamic load rating C 31.5 kN
Basic static load rating C0 78 kN
Specific dynamic load factor K 100 N/mm²
Specific static load factor K0 250 N/mm²
Material constant KM 1400
Mass 0.065 kg

As SKF bearing distributor, Nodes bearings have SKF GE20C spherical plain bearings in stock.

SKF GE20C bearing cross reference

IKO GE20EC bearing
20mm x 35mm x 16mm
IKO GE20ES bearing
20mm x 35mm x 16mm
IKO GE20ES-2RS bearing
20mm x 35mm x 16mm
IKO GE20GS bearing
20mm x 42mm x 25mm
IKO GE20GS-2RS bearing
20mm x 42mm x 25mm
SKF GE20ES bearing
20mm x 35mm x 16mm
SKF GE20ES-2RS bearing
20mm x 35mm x 16mm
INA GE20-DO bearing
20mm x 35mm x 16mm
INA GE20-DO-2RS bearing
20mm x 35mm x 16mm
INA GE20-FO-2RS bearing
20mm x 42mm x 25mm
INA GE20-PB bearing
20mm x 40mm x 25mm
INA GE20-UK bearing
20mm x 35mm x 16mm
