SKF GE80ES Bearing

SKF GE80ES spherical plain bearings | 80x120x55mm

Also known as : GE80ES, GE80DO

  • Inside Diameter: 80 mm
  • Outside Diameter: 120 mm
  • Width: 55 mm
  • Basic dynamic load rating: 400 kN
  • Basic static load rating: 2000 kN

Inquire Now


SKF GE80ES Bearing

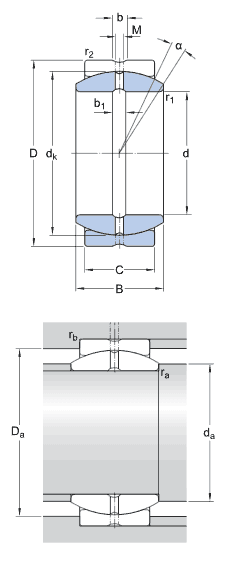

SKF GE80ES Bearing details

number GE80ES
Type Radial spherical plain bearings
d 80 mm
D 120 mm
B 55 mm
C 45 mm
α 6 °
dk 105 mm
b 7.7 mm
b1 7.7 mm
M 4 mm
r1 min. 1 mm
r2 min. 1 mm
da min. 87.1 mm
da max. 89.4 mm
Da min. 99.7 mm
Da max. 113.8 mm
ra max. 1 mm
rb max. 1 mm
Calculation data
Basic dynamic load rating C 400 kN
Basic static load rating C0 2000 kN
Specific dynamic load factor K 100 N/mm²
Specific static load factor K0 500 N/mm²
Material constant KM 330
Mass 2.3 kg

As SKF bearing distributor, Nodes bearings have SKF GE80ES spherical plain bearings in stock.

A characteristic feature of SKF steel/steel radial spherical plain bearings is the outer ring, which is intentionally fractured so that it can be sprung apart to enable the inner ring to be inserted

SKF GE80ES bearing cross reference

IKO GE80ES bearing
80mm x 120mm x 55mm
IKO GE80ES-2RS bearing
80mm x 120mm x 55mm
IKO GE80GS bearing
80mm x 130mm x 75mm
IKO GE80GS-2RS bearing
80mm x 130mm x 75mm
SKF GE80ES-2RS bearing
80mm x 120mm x 55mm

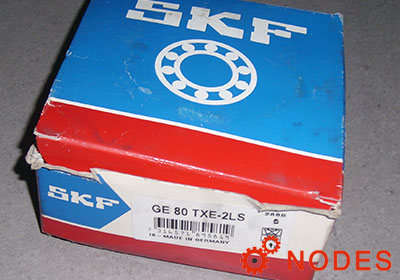

SKF GE80TXE-2LS bearing
80mm x 120mm x 55mm
INA GE80-DO bearing
80mm x 120mm x 55mm
INA GE80-DO-2RS bearing
80mm x 120mm x 55mm
INA GE80-FO-2RS bearing
80mm x 130mm x 75mm
INA GE80-HO-2RS bearing
80mm x 120mm x 74mm
INA GE80-UK-2RS bearing
80mm x 120mm x 55mm
INA GE80-FW-2RS bearing
80mm x 130mm x 75mm
