SKF 22222E Bearing

SKF 22222E spherical roller bearings

Also known as : 22222E, 22222-E1

  • Inside Diameter: 110 mm
  • Outside Diameter: 200 mm
  • Width: 53 mm
  • Basic dynamic load rating: 572 kN
  • Basic static load rating: 640 kN

Inquire Now


SKF 22222E Bearing

SKF 22222E Bearing details

model 22222E
d 110 mm
D 200 mm
B 53 mm
d2 130 mm
D1 178 mm
b 8.3 mm
K 4.5 mm
r1,2 min. 2.1 mm

da min 122 mm
Da max 188 mm
ra max 2 mm

C 572 kN, Basic dynamic load rating
C0 640 kN, Basic static load rating
Pu 63 kN, Fatigue load limit
Reference speed 3000 r/min
Limiting speed 4000 r/min
e 0.25, Calculation factor
Y1 2.7, Calculation factor
Y2 4, Calculation factor
Y0 2.5, Calculation factor
Mass 7 kg

SKF 22222E roller bearings, SKF Explorer, Spherical roller bearings.

SKF 22222E bearing cross reference

FAG 22222-E1-XL bearing
110mm x 200mm x 53mm
SKF 22222EK bearing
110mm x 200mm x 53mm

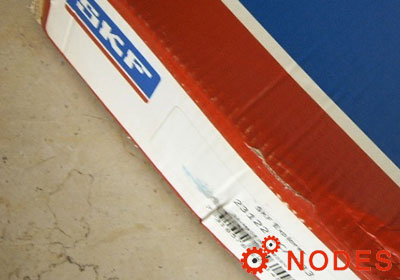

SKF 23122CC/W33 bearing
110mm x 180mm x 56mm

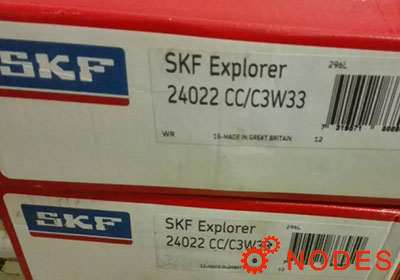

SKF 24022CC/C3W33 bearing
110mm x 170mm x 60mm
SKF 24122CC/W33 bearing
110mm x 180mm x 69mm
NSK 22222EAE4 bearing
110mm x 200mm x 53.0mm
NSK 22222EAKE4 bearing
110mm x 200mm x 53.0mm
FAG 22222-E1-XL-K bearing
110mm x 200mm x 53mm
FAG WS22222-E1-XL-2RSR bearing
110mm x 200mm x 63mm
NTN 22222EMD1 bearing
110mm x 200mm x 53mm
NTN 22222EAKD1 bearing
110mm x 200mm x 53mm
NTN 22222EMKD1 bearing
110mm x 200mm x 53mm
