SKF 22320EJA/VA405 Bearing

SKF 22320EJA/VA405 bearings for vibratory applications

Also known as : 22320EJA/VA405, 22320-E1

  • Inside Diameter: 100 mm
  • Outside Diameter: 215 mm
  • Width: 73 mm
  • Basic dynamic load rating: 847 kN
  • Basic static load rating: 950 kN

Inquire Now

SKF 22320EJA/VA405 Bearing

SKF 22320EJA/VA405 Bearing details

model 22320EJA/VA405
d 100 mm
D 215 mm
B 73 mm
d2 130 mm
D1 184 mm
b 11.1 mm
K 6 mm
r1,2 min. 3 mm

da min 114 mm
Da max 201 mm
ra max 2.5 mm

C 847 kN, Basic dynamic load rating
C0 950 kN, Basic static load rating
Pu 88 kN, Fatigue load limit
Reference speed 2400 r/min
Limiting speed 3000 r/min
e 0.33, Calculation factor
Y1 2, Calculation factor
Y2 3, Calculation factor
Y0 2, Calculation factor
Mass 13.5 kg

SKF 22320EJA/VA405 roller bearings, SKF Explorer, Spherical roller bearings for vibratory applications.

Related numbers

FAG 22320-E1-XL bearing
100mm x 215mm x 73mm

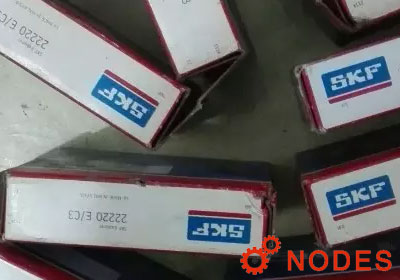

SKF 22220E/C3 bearing
100mm x 180mm x 46mm

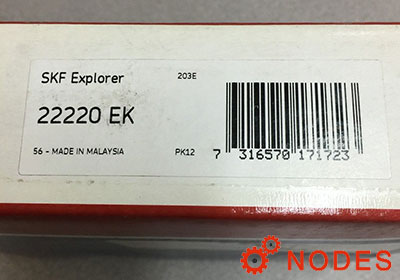

SKF 22220EK bearing
100mm x 180mm x 46mm
SKF 23220CC/W33 bearing
100mm x 180mm x 60.3mm

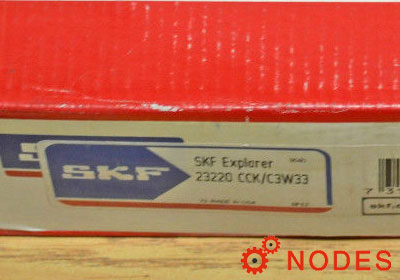

SKF 23220CCK/W33 bearing
