SKF NA6910 needle bearings
Also known as : NA6910
- Inside Diameter: 50 mm
- Outside Diameter: 72 mm
- Width: 40 mm
- Basic dynamic load rating: 73.7 kN
- Basic static load rating: 150 kN
SKF NA6910 Bearing

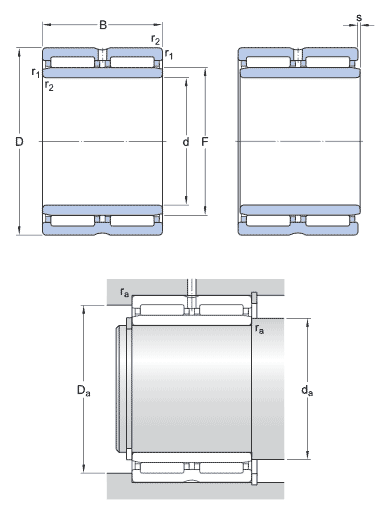

SKF NA6910 Bearing details
| number | NA6910 |
|---|---|
| d | 50 mm |
| D | 72 mm |
| B | 40 mm |
| F | 58 mm |
| r1,2 min. | 0.6 mm |
| s | 0.5 mm |
| da min. | 54 mm |
| Da max. | 68 mm |
| ra max. | 0.6 mm |
| Calculation data | |
| C | 73.7 kN, Basic dynamic load rating |
| C0 | 150 kN, Basic static load rating |
| Pu | 18.6 kN, Fatigue load limit |
| Reference speed | 7000 r/min |
| Limiting speed | 8000 r/min |
| Mass | 0.52 kg |
As SKF bearing distributor, Nodes bearings have SKF NA6910 needle roller bearings in stock, SKF Needle roller bearings, with machined rings, with an inner ring.
SKF NA6910 bearing cross reference
IKO NA6910 bearing
50mm * 72mm * 40mm
IKO NA6910UU bearing
50mm * 72mm * 40mm
INA NA6910-ZW-XL bearing
50mm x 72mm x 40mm
